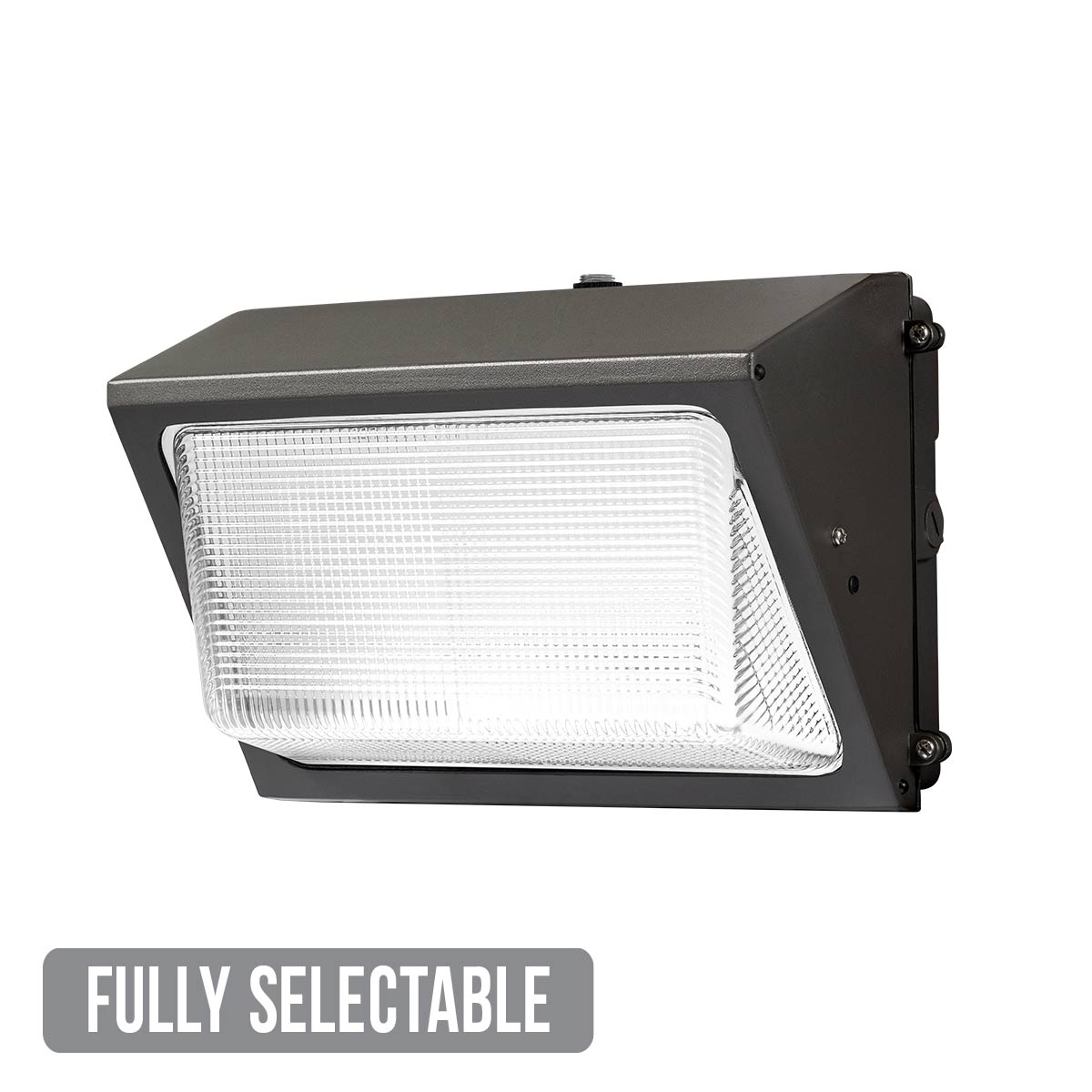

Classic Fully Selectable Wall Light Medium

WLMS

Replace up to 12 standard wall lights with just one. These fixtures feature both selectable lumens and color temperature, reducing stocking complexity and provides additional flexibility for contractors. These wall lights utilize an innovative, proprietary design to eliminate glare and wasted light. A unique design directs the light forward and downward, resulting in a smooth, uniform light pattern on the ground.

All Available Sizes

MEDIUM HOUSING (WLMS)

Medium

LARGE HOUSING (WLDS)

Large

Featured Resources

Ask a Question

Variations

HousingUnitCRISelectable 4000K CCTSelectable 4500K CCTSelectable 5000K CCTReplaces Up To
Delivered LumensEfficacy (LpW)WattageDelivered LumensEfficacy (LpW)WattageDelivered LumensEfficacy (LpW)Wattage
WLMS3‑9L802,601120222,704125222,60212122100W MH
5,513126445,732131445,51612644175W MH
7,892123648,205127647,89612364400W MH
9,128120769,490130739,13312076400W MH

Features & Specifications

  • Replace 12 standard wall lights with just 1 fixture.
  • Utilizes an innovative, proprietary design to eliminate glare and wasted light.
  • Same footprint as the fixtures they replace, reducing labor costs.
  • The durable, die-cast aluminum housing provides environmental protection and aids in heat dissipation.
  • Optional emergency battery backup is available.
Max Lumens
9,100
Min Lumens
2,600
Color Temperatures
Selectable 4000K 4500K 5000K
Additional Options
QuickShipDLCUS Manufactured (BAA Compliant)DimmableUL ListedBattery BackupLumen Selectable
