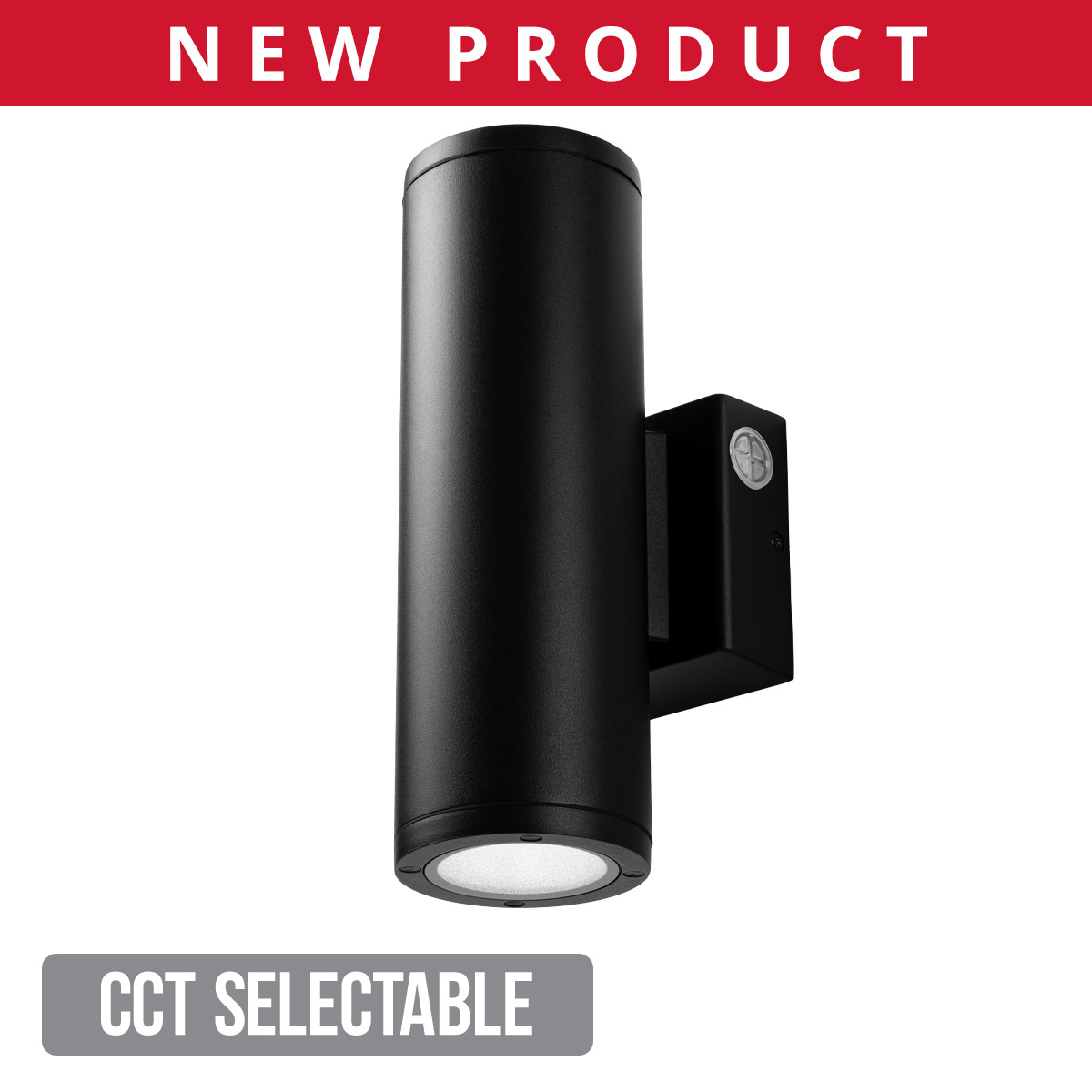

4" Cylinders – CCT Selectable

4″ Cylinders – CCT Selectable

WCS4

Atlas Lighting’s value line of products is designed to provide a highly competitive, lower-cost entry point to LED lighting. Built with durable aluminum and precision optics, our Wall Cylinders offer tailored versatility with selectable CCT, photocontrol, and uplight/downlight modes for customized architectural lighting.

All Available Sizes

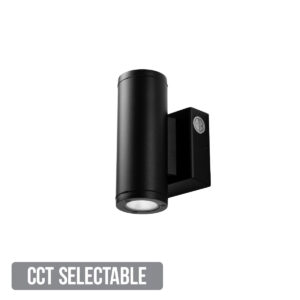

3-inch Cylinders – CCT Selectable

3″ Cylinder

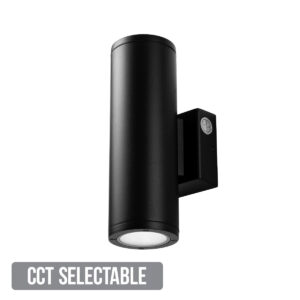

4-inch Cylinders – CCT Selectable

6-inch Cylinders – CCT Selectable

6″ Cylinder

Featured Resources

Ask a Question

Variations

HousingUnitFixture SizeCRIDelivered LumensEfficacy (LpW)Wattage
WCS43L4"802,54213020
Data is based off 5000K with 75° distribution in the down only position

Features & Specifications

  • Aluminum extrusion housing with UV stablized powder coated finish.
  • Custom engineered reflectors for smooth distribution.
  • Semi-diffuse glass for the ideal combination of optical efficiency and uniformity.
  • Atlas Lighting’s value line of products are backed by the same US-based customer service and technical support teams as all other Atlas products.
Max Lumens
3,000
Min Lumens
3,000
Color Temperatures
Selectable 3000K 4000K 5000K
Additional Options
IP65UL Listed
