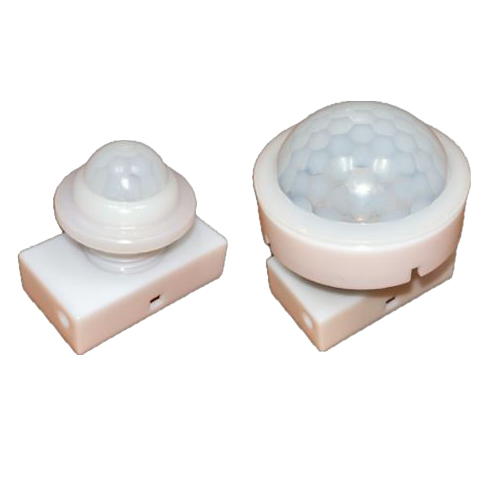

AirLink Blue Integrated Multi Range Motion and Photo Sensor
The AirLink Blue motion and photo sensor multi-range controller provides multi-level control based on motion and/or daylight. Up to 150 fixtures can be grouped to be controlled by a single sensor. Controls 0-10 VDC LED drivers and is rated for cold and wet locations (-40°F to 122°F). The ALBMR incorporates a patent pending design incorporating a singular sensor housing body with the ability to add 3 different lens sizes depending on project application requirements. Control parameters are adjustable via an iOS App capable of storing and transmitting sensor profiles.
Featured Resources
Features & Specifications
- Integrated into the housing of Eagle Series Medium Area Lights (SLPM).
- Quad element PIR sensor with 360 degree coverage pattern and built in day/night photo sensor.
- Sensor housing is white polycarbonate.
- Sensor settings are stored and maintained in the event of a power failure.
- Bluetooth Mesh radio pairs with iOS applications for initial system setup and subsequent adjustments or changes.
- Red LED motion indicator.
