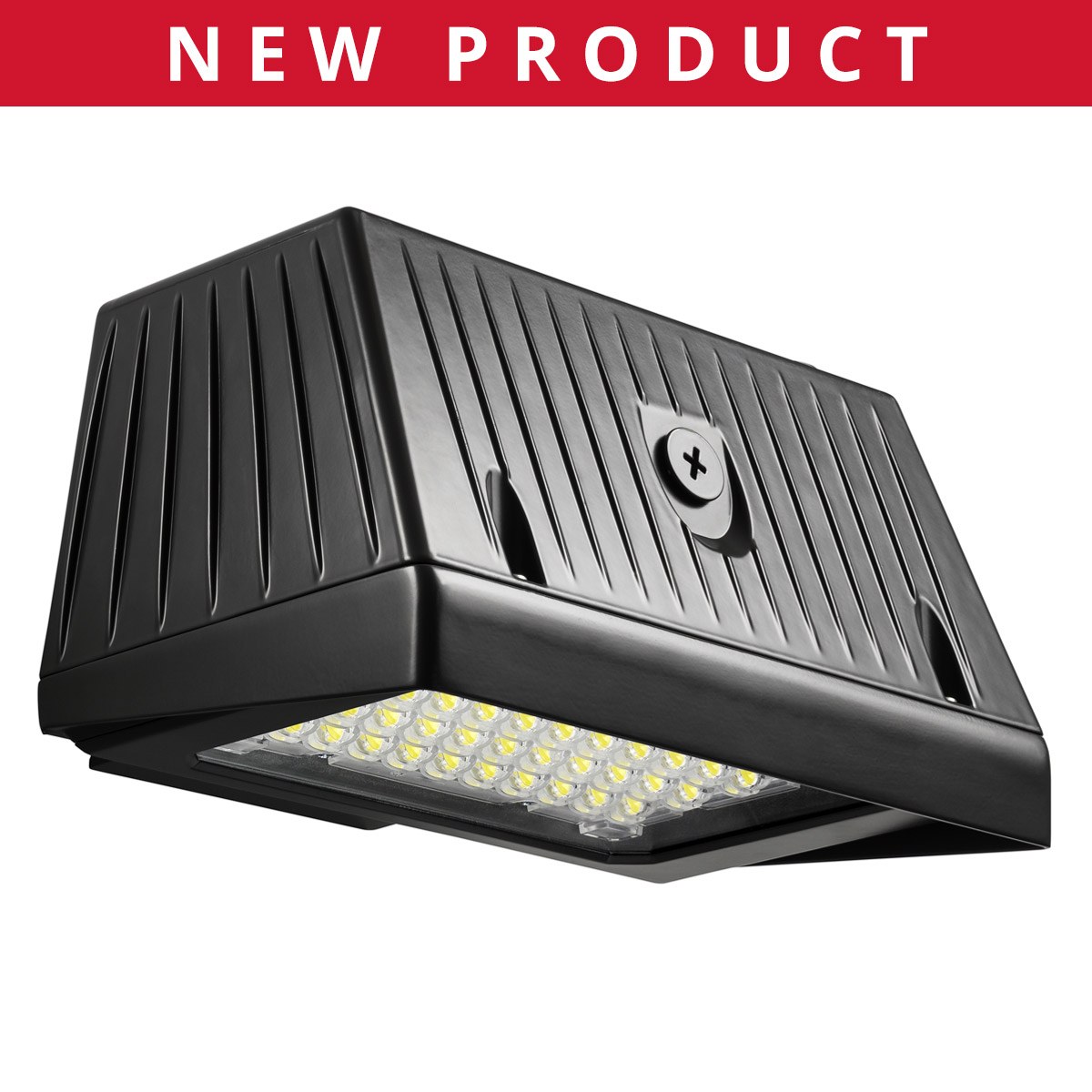

Black Hawk Wall Light
Our high‑performance LED Wall Lights are manufactured in the USA and available in a vast array of configurations that are suitable for virtually any application.
Featured Resources
Variations
| Housing | Unit | Distribution | CRI | 3000K CCT | 4000K CCT | 4500K CCT | 5000K CCT | Wattage | Replaces Up To | ||||
| Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | ||||||
| WBHM | 8L | Type II | 70 | 9,243 | 148 | 9,721 | 156 | 9,486 | 152 | 9,775 | 156 | 62 | 175W MH |
| Type III | 9,164 | 147 | 9,639 | 154 | 9,405 | 150 | 9,691 | 155 | |||||
| Forward Throw | 8,878 | 142 | 9,338 | 149 | 9,111 | 146 | 9,388 | 150 | |||||
| Type V | 9,093 | 145 | 9,564 | 153 | 9,332 | 149 | 9,616 | 154 | |||||
| 12L | Type II | 70 | 13,137 | 139 | 13,817 | 146 | 13,482 | 142 | 13,892 | 147 | 95 | 250W MH | |
| Type III | 13,025 | 137 | 13,699 | 145 | 13,367 | 141 | 13,774 | 145 | |||||
| Forward Throw | 12,618 | 133 | 13,271 | 140 | 12,950 | 137 | 13,344 | 141 | |||||
| Type V | 12,924 | 136 | 13,593 | 143 | 13,264 | 140 | 13,667 | 144 | |||||
| 16L | Type II | 70 | 15,275 | 124 | 16,758 | 136 | 16,270 | 132 | 16,157 | 131 | 123 | 400W MH | |
| Type III | 15,326 | 125 | 16,814 | 137 | 16,324 | 133 | 16,211 | 132 | |||||
| Forward Throw | 14,771 | 120 | 16,205 | 132 | 15,733 | 128 | 15,624 | 127 | |||||
| Type V | 15,467 | 126 | 16,969 | 138 | 16,475 | 134 | 16,360 | 133 | |||||
Features & Specifications
- Designed for commercial and industrial applications, providing cooler operating temperatures, brighter light and longer LED life.
- Labor saving quick mount box with apertures for continuous wiring.
- More usable light output is produced while eliminating glare through the use of optics. The fixture design directs more light down and forward without wasting lumens and offensive light.
Max Lumens
16,000Min Lumens
8,000Color Temperatures
3000K 4000K 4500K 5000KAdditional Options
