Continuous Linear

Continuous Linear

ACL3

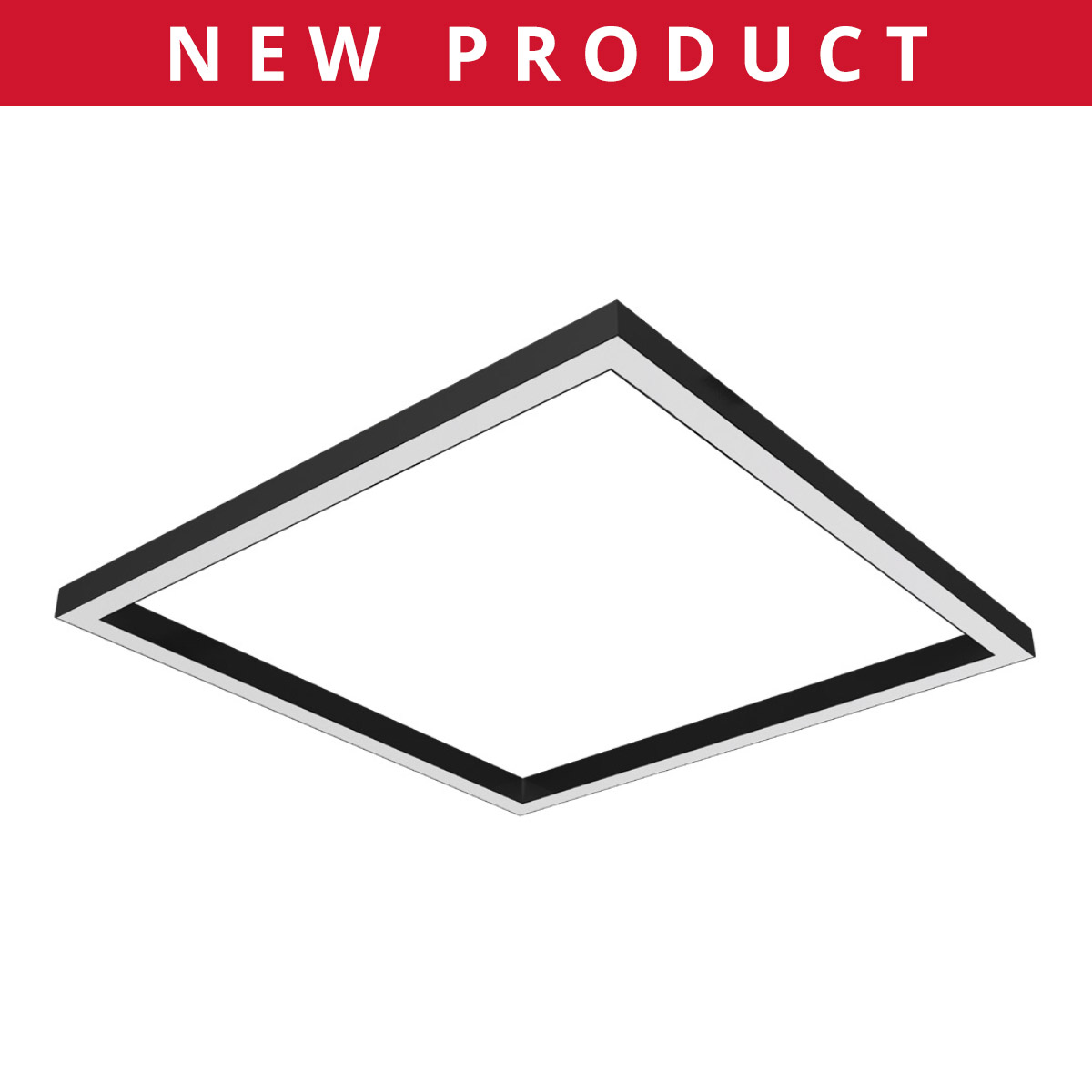

The ACL3 Continuous Linear offers tremendous value for any commercial project. The ACL3 creates seamless continuous runs with both direct and indirect illumination to improve visual comfort. Seamless straight runs or complete rectangles provide clean aesthetics for conference rooms, hallways, open office or reception areas.

Featured Resources

Variations

Lumen PackageIllumination3000K CCT3500K CCT4000K CCT5000K CCTWattage/ft
7LDirect720-750-723-718-6
10LDirect1071-1115-1075-1068-9
13LDirect1289-1342-1294-1285-12
7LIndirect-855-890-858-8526
10LIndirect-1232-1282-1236-12289
13LIndirect-1594-1659-1600-158912
7LDirect/Indirect72085575089072385871885212
10LDirect/Indirect1071123211151282107512361068122818
13LDirect/Indirect1289159413421659129416001285158924
lumens per foot

Features & Specifications

  • ACL3 Series provides light outputs up to 5,200 lumens and is available in 2ft., 3ft. and 4ft. lengths.
  • Seamless continuous runs with pendant, wall, or surface mounting options.
  • Direct, indirect, or direct/indirect light with multiple distributions.
  • Extruded aluminum housing with polycarbonate cover lens for impact resistance.
  • Optional AirLink™ Blue wireless controls and occupancy sensors.
Max Lumens
5,200
Min Lumens
1,400
Color Temperatures
3000K 3500K 4000K 5000K
Additional Options
DLCDimmableUL Listed Damp LocationBattery Backup
