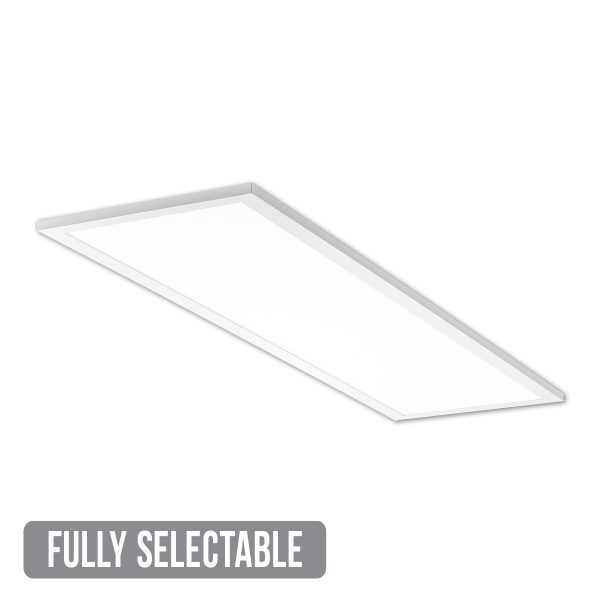

FAELP12 - Field Adjustable Edge Lit Panel 1x2
FAELP22 - Field Adjustable Edge Lit Panel 2x2 Side View
FAELP - Field Adjustable Edge Lit Panel Selection Switches

Field Adjustable Edge Lit Panel 1’x4′

FAELP14

Replace up to 9 standard panels with just 1! These fixtures feature selectable lumen and color temperature options, reducing stocking complexity and providing additional flexibility for contractors. The extremely low-profile design of these fixtures makes installation quick and easy.

All Available Sizes

Field Adjustable Edge Lit Panel 1'x4' (FAELP14)

Field Adjustable Edge Lit Panel 2'x2' (FAELP22)

2′ x 2′

Field Adjustable Edge Lit Panel 2'x4' (FAELP24)

2′ x 4′

Featured Resources

Ask a Question

Variations

HousingUnitCRISelectable 3500K CCTSelectable 4000K CCTSelectable 5000K CCTWattageReplaces Up To
Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)
FAELP141'x4'>803,1021213,2741323,15412325(2) F32-T8
3,5131183,7481303,57012030
4,3981104,7671254,46411240

Features & Specifications

  • Replace 9 standard panels with just 1 fixture.
  • Selectable switches are easily accessible on the driver compartment.
  • The extremely low-profile design makes installation quick and easy.
  • Product series is also available in 2×2 and 2×4 configurations.
Max Lumens
4,700
Min Lumens
3,100
Color Temperatures
Selectable 3500K 4000K 5000K
Additional Options
DLCDimmableLumen Selectable

Resources & Downloads

Specsheets
Guides
Miscellaneous

Lighting Calculation Tools
