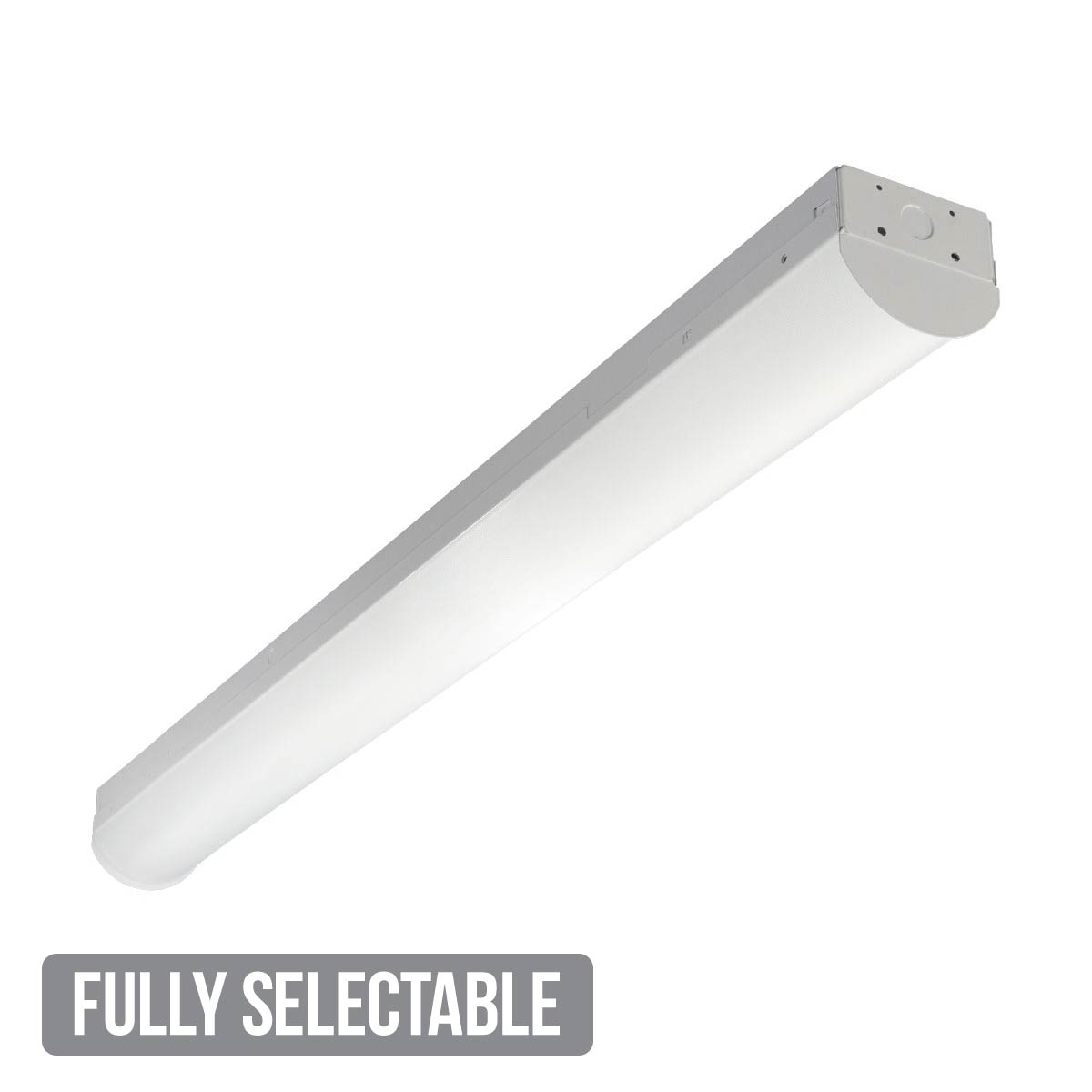

Fully Selectable Linear Strip 4ft
The Atlas Linear LED Strip provides an ideal lighting solution for many applications. The rigid, 22 gauge post-painted housing is available for either individual or continuous row mounting. The custom frosted acrylic lens eliminates bright spots from individual LED’s and provides high vertical illumination and visual comfort.
Featured Resources
Variations
| Housing | Unit | CRI | Selectable 4000K CCT | Selectable 4500K CCT | Selectable 5000K CCT | Wattage | |||
| Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | ||||
| ILSS4 | 4-7L | 80 | 4,635 | 158 | 4,895 | 167 | 4,682 | 159 | 29 |
| 5,813 | 154 | 6,140 | 162 | 5,872 | 155 | 38 | |||
| 7,466 | 147 | 7,820 | 161 | 7,479 | 147 | 51 | |||
| ILSS4 | 4-7LL | 80 | 4,175 | 142 | 4,412 | 150 | 4,222 | 144 | 29 |
| 5,236 | 139 | 5,534 | 146 | 5,295 | 140 | 38 | |||
| 6,658 | 131 | 6,990 | 144 | 6,688 | 132 | 51 | |||
Features & Specifications
- Replace 9 standard strips with just 1 fixture.
- Features a rigid 22-gauge post-painted housing that is lightweight and durable.
- The fixture can be mounted individually or in continuous row mounting.
- An optional frosted acrylic lens, designed to diffuse bright spots from individual LEDs and improve vertical illumination, is available.
- Product series is available in multiple housings sizes.
Max Lumens
7,000Min Lumens
4,000Color Temperatures
4000K 4500K 5000KAdditional Options
