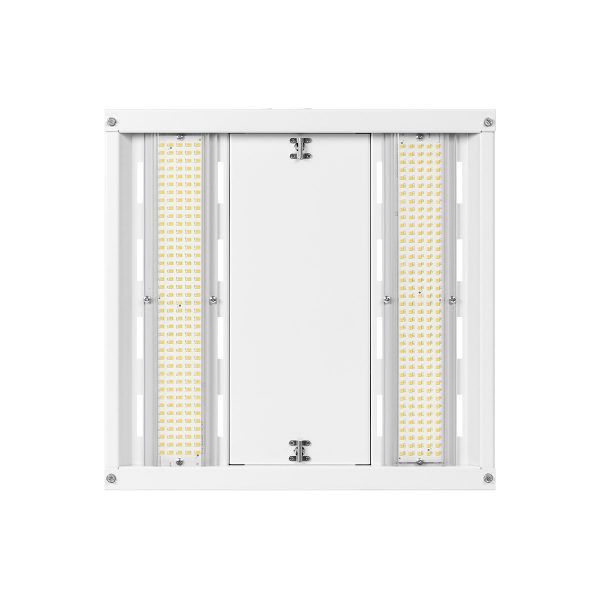

IHB - Independence High Bay Bottom View Clear Lens

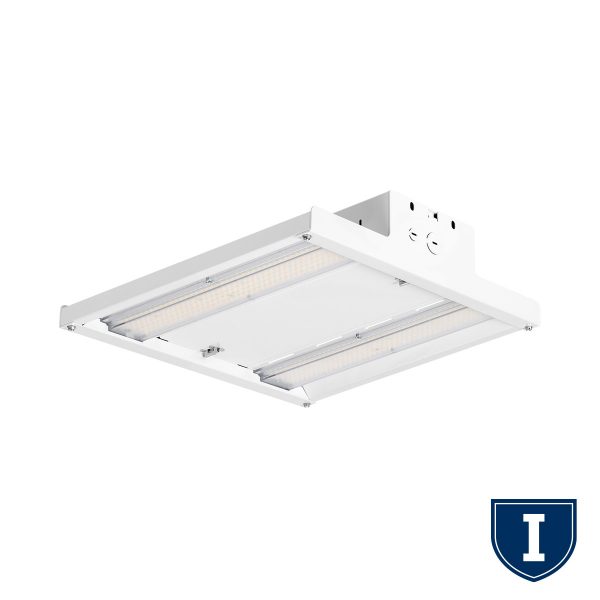

Independence High Bay

IHB

The Independence Series High Bays offer exceptional performance and value in a lightweight, compact design. Available in single, double and triple module configurations and are perfect for virtually any high bay application. A portion of the proceeds from every Independence Series product sold will be donated to The Independence Fund, a non-profit organization dedicated to helping wounded veterans.

All Available Versions

INDEPENDENCE HIGH BAY SELECTABLE LUMENS (IHBS)

Single
Selectable
Lumens

Double

Triple

Featured Resources

IHB Cut Sheet

Ask a Question

Variations

Housing	Unit	Lens	CRI	4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Unit	Lens	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
IHB	12L	Clear	80	12,528	152	12,528	159	12,597	160	83	175W MH
	12LD	Diffused	80	11,358	138	11,358	138	11,421	139	82
	12LN	Narrow	80	11,089	143	11,089	143	11,501	145	79
	15L	Clear	80	16,144	154	16,144	152	16,513	157	105	250W MH
	15LD	Diffused	80	14,567	140	14,567	140	14,949	143	105
	15LN	Narrow	80	14,652	140	14,652	140	15,196	145	105
	18L	Clear	80	18,597	153	18,597	153	19,022	156	122	250W MH
	18LD	Diffused	80	16,767	137	16,767	137	17,207	141	122
	18LN	Narrow	80	16,766	138	16,766	138	17,389	143	122
	24L	Clear	80	23,910	148	23,899	148	23,899	148	162	400W MH
	24LD	Diffused	80	21,506	133	21,404	136	21,404	136	162
	24LN	Narrow	80	21,363	132	21,363	132	21,491	133	162
	30L	Clear	80	29,550	159	29,550	159	30,370	166	186	400W MH
	30LD	Diffused	80	26,470	143	26,470	143	27,343	149	185
	30LN	Narrow	80	26,488	143	26,488	143	27,097	148	185

Features & Specifications

The high brightness LEDs produce a smooth, even and uniform light pattern at a variety of mounting heights.
Clear lens is standard; also available with a diffused lens for enhanced visual comfort, and narrow optics for aisle lighting applications.
The low-profile housing is lightweight and durable, making it easy to install and perfect for many applications.
The convenient quick wire access panel is easy to open by removing a single screw on the top of the fixture.
The tool-free driver compartment allows for easy access for maintenance.
The available Pendant Mount Kit makes 1‑to‑1 HID replacements quick and easy.
Also available in double and triple module configurations to accommodate an even larger array of high bay applications.
