IHBS - Independence Lumen Selectable High Bay Clear Lens

IHBS - Independence Lumen Selectable High Bay Inside View

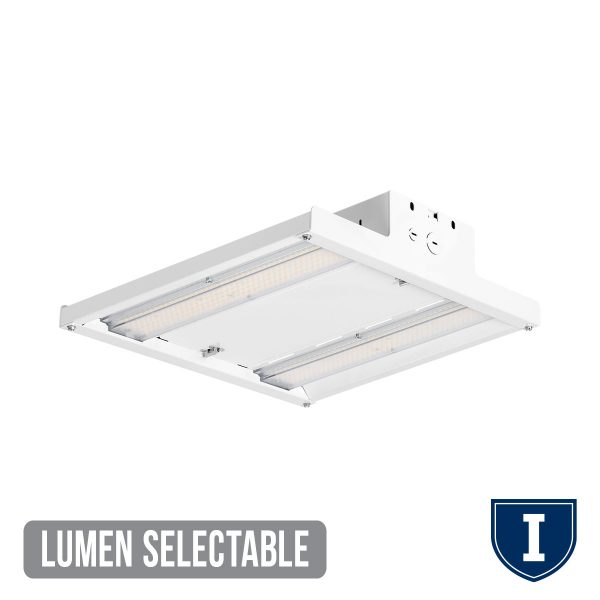

Independence Lumen Selectable High Bay

IHBS

Replace up to 3 standard high bays with just 1! These fixtures feature selectable lumen options, reducing stocking complexity and providing additional flexibility for contractors. The Independence Series High Bays offer exceptional performance and value in a lightweight, compact design. A portion of the proceeds from every Independence Series product sold will be donated to The Independence Fund, a non-profit organization dedicated to helping wounded veterans.

All Available Versions

Single

INDEPENDENCE LUMEN SELECTABLE HIGH BAY (IHBS)

Double

Triple

Featured Resources

IHB Cut Sheet

Ask a Question

Variations

Housing	Unit	Lens	CRI	4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Unit	Lens	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
IHBS	12-24L	Clear	80	12967	158	12967	158	13011	157	83	400W MH
			80	19045	152	19045	152	19110	153	125
			80	23843	146	23843	146	23924	147	163
	15-30L		80	14135	158	14135	158	14435	158	90	400W MH
			80	21037	152	21037	152	21483	156	138
			80	27560	145	27560	145	28145	148	190
	12-24LD	Diffused	80	11587	141	11523	139	11523	139	83	400W MH
			80	16954	136	16860	135	16860	135	125
			80	21281	132	21163	131	21163	131	162
	15-30LD		80	12931	144	12931	144	13241	145	90	400W MH
			80	19317	140	19317	140	19780	143	138
			80	25353	133	25353	133	25961	136	190
	15-30LN	Narrow	80	13463	150	13463	150	13721	150	90	400W MH
			80	20006	145	20006	145	20389	147	138
			80	26318	138	26318	138	26822	141	190

Features & Specifications

Replace 3 standard high bays with just 1 fixture.
The high brightness LEDs produce a smooth, even and uniform light pattern at a variety of mounting heights.
Clear lens is standard; also available with a diffused lens for enhanced visual comfort, and narrow optics for aisle lighting applications.
The low-profile housing is lightweight and durable, making it easy to install and perfect for many applications.
The convenient quick wire access panel is easy to open by removing a single screw on the top of the fixture.
The tool-free driver compartment allows for easy access for maintenance.
The available Pendant Mount Kit makes 1‑to‑1 HID replacements quick and easy.
