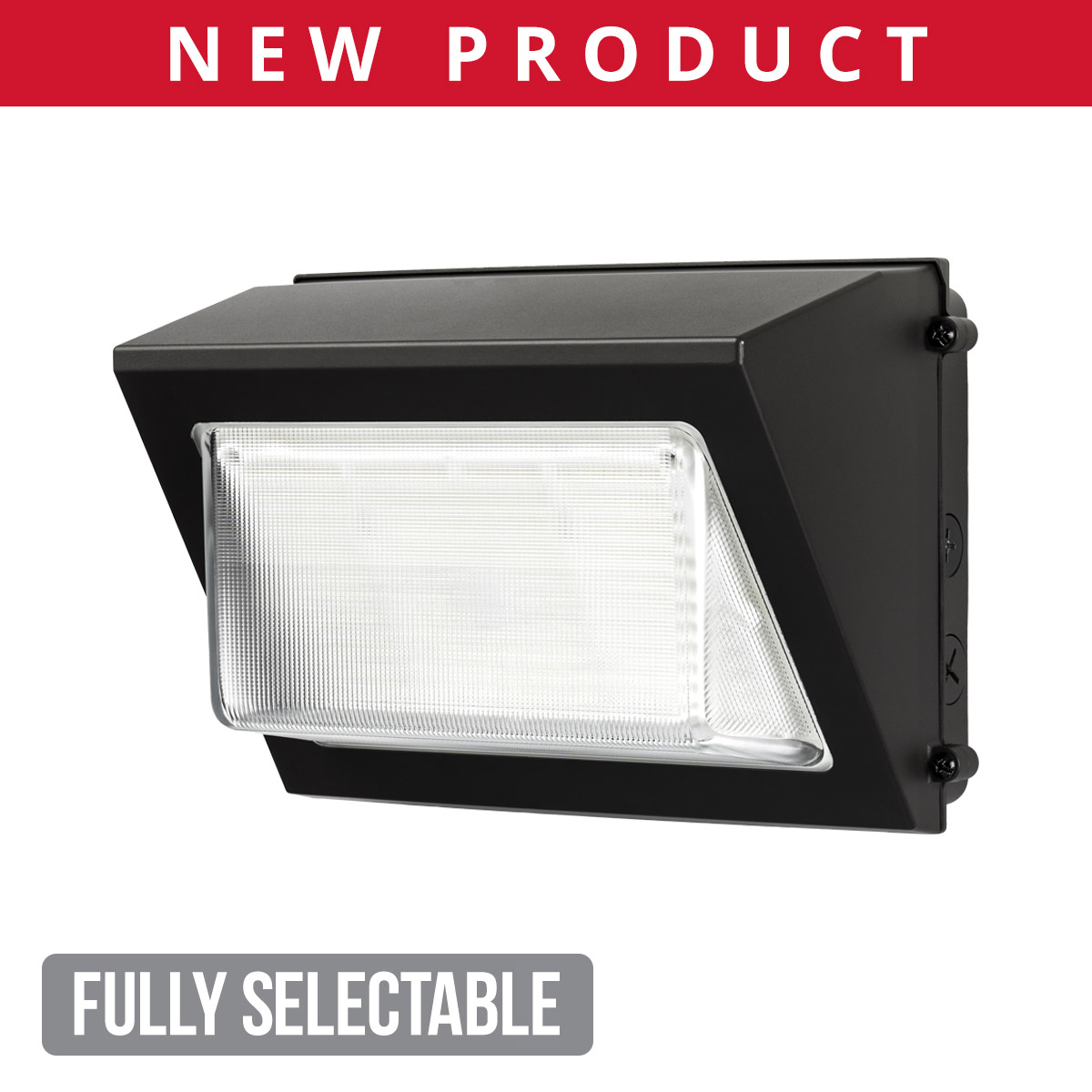

Fully Selectable Wall Light Medium

Fully Selectable Wall Light Medium

FCW

The Field-Configurable Wall Light delivers maximum flexibility in a classic design, without the headaches of inventory and installation complexity. With just the flip of a switch, you can adjust lumen output, color temperature, and light distribution in the field.

Featured Resources

Variations

HousingUnitCRIDistributionSelectable 3000K CCTSelectable 4000K CCTSelectable 5000K CCTWattageBug RatingReplaces Up To
Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)
FCW5-11L80Down61911556265164623115840WB1‑U4‑G4400W MH
84911538593161854615655WB1‑U4‑G5
10,51814910,92116010,62315070WB1‑U4‑G5
Full61611566235160620015740WB1‑U4‑G4
84501558551158850415655WB1‑U4‑G5
10,46715110,59215510,53415370WB1‑U5‑G5
FT56351425702149567114440WB1‑U4‑G4
77281407821147777814255WB1‑U4‑G5
9,5731359,8781459,64413670WB1‑U4‑G5

Wall Pack
Wallpack
Wallpak

Features & Specifications

  • Features selectable lumen, CCT, and distribution options in a single fixture.
  • Energy-efficient design saves money on energy costs.
  • Same footprint as the fixtures they replace, reducing labor costs.
  • Atlas Lighting’s economy line of products are backed by the same US-based customer service and technical support teams as all other Atlas products.
Max Lumens
11.000
Min Lumens
5,000
Color Temperatures
Selectable 3000K 4000K 5000K
Additional Options
QuickShipDLC PremiumDimmableUL ListedLumen Selectable

Resources & Downloads

Specsheets
Guides
Miscellaneous
