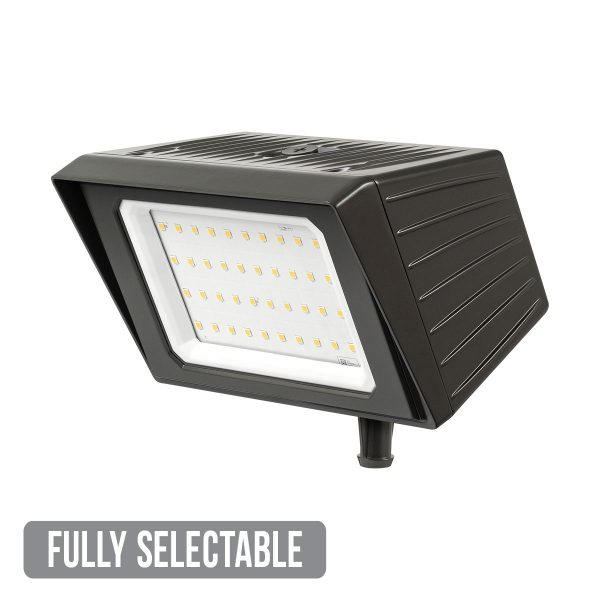

HSXW - Hawk Fully Selectable Extra-Wide Flood Light Knuckle

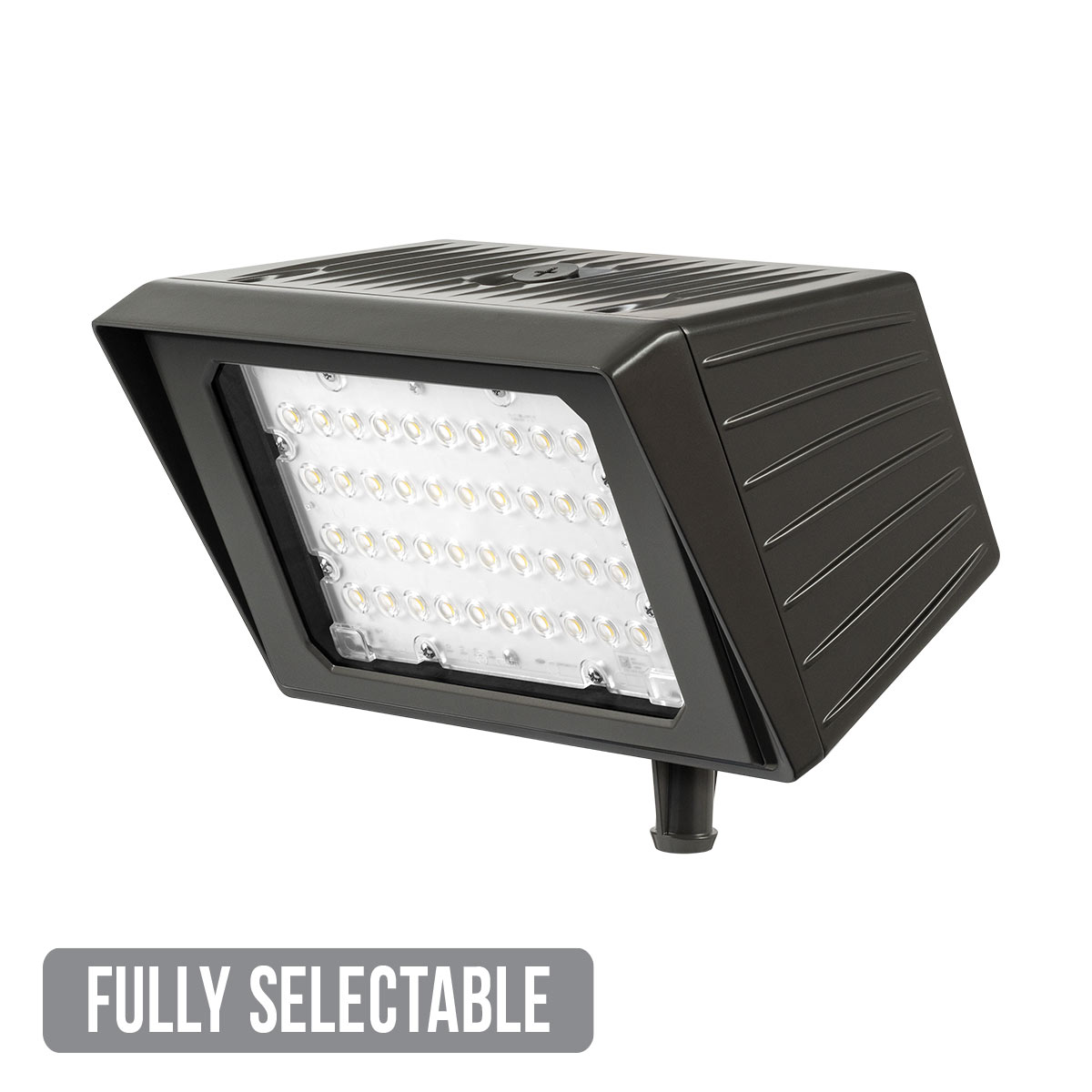

HSXP - Hawk Fully Selectable Optic Flood Light Knuckle

Hawk Fully Selectable Flood Light

HSX

These flood lights feature user‑selectable lumen output and color temperature. These innovative products help distributors reduce SKUs, increase turns and drive profitability by combining 9 different LED flood lights into a single fixture. The Extra-Wide (XW) version produces a traditional wide distribution pattern while the Precision Optic (XP) version produces a narrow, focused distribution pattern that is well-suited for longer setbacks.

All Available Versions

Fixed
Output

Featured Resources

Hawk Floods Cut Sheet

Ask a Question

Variations

Housing	Unit	CRI	Selectable 3000K CCT			Selectable 4000K CCT			Selectable 5000K CCT			Replaces Up To
Housing	Unit	CRI	Delivered Lumens	Efficacy (LpW)	Watts	Delivered Lumens	Efficacy (LpW)	Watts	Delivered Lumens	Efficacy (LpW)	Watts	Replaces Up To
HSXP	8‑16L	70	8,445	137	62	9,178	149	62	8,749	142	62	400W MH
			12,144	130	93	13,198	141	93	12,581	135	93
			15,170	120	127	16,487	138	120	15,716	124	127
HSXW	8‑16L	70	9,052	146	62	9,945	161	62	9,322	151	62	400W MH
			13,166	141	93.5	14,465	155	93.5	13,559	145	93.5
			16,551	131	126	18,184	152	120	17,045	135	126

Features & Specifications

Replace 9 traditional flood lights with just 1!

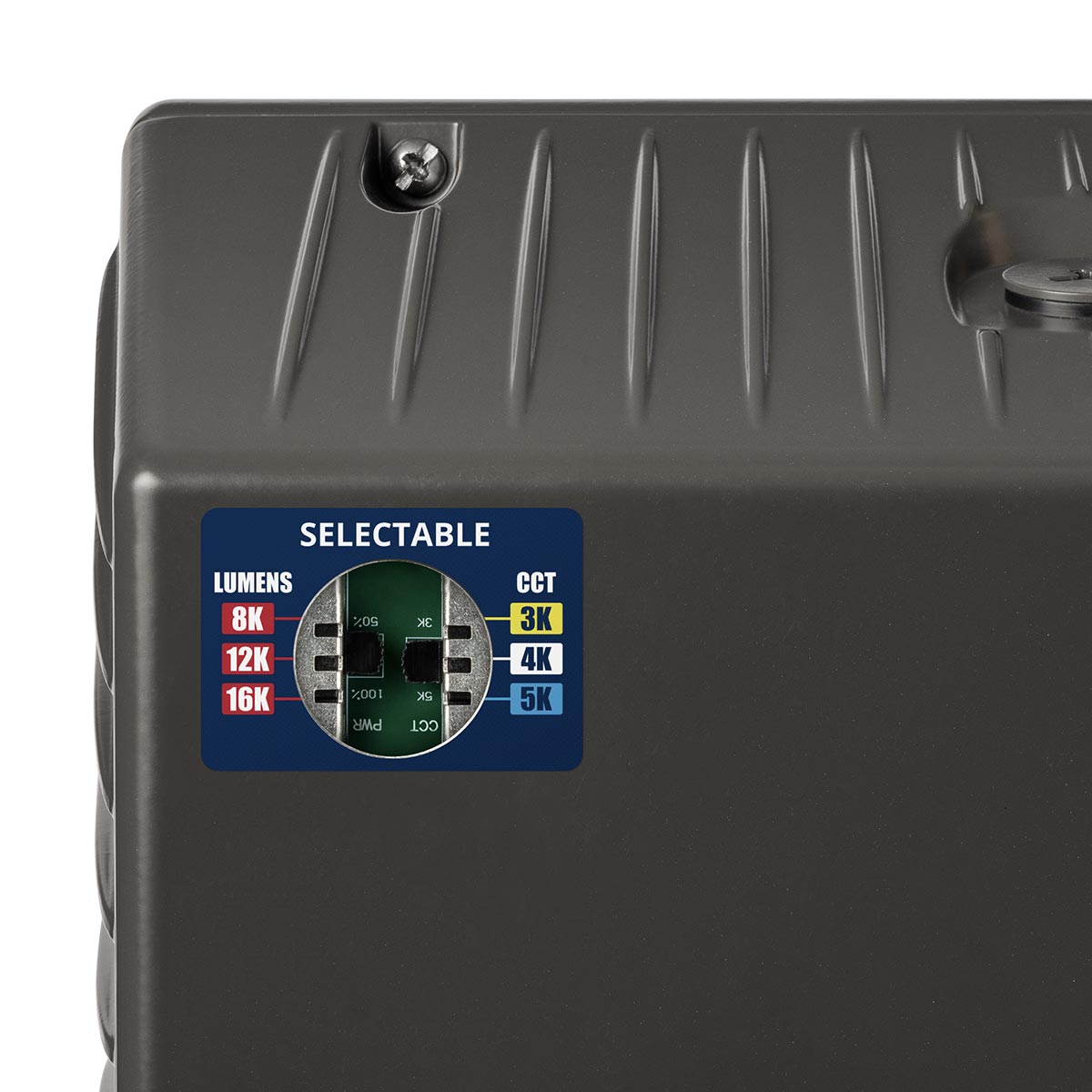

Change in just seconds – switches allow user to easily select lumen output and color temperature.
Extra-Wide (XW) version produces a wide, smooth light distribution similar to HID floods.
Precision Optic (XP) version produces a focused, narrow pattern ideal for longer setbacks.
Utilizes a die‑cast aluminum housing with airflow fins for heat dissipation.

➤ Watch the Video
