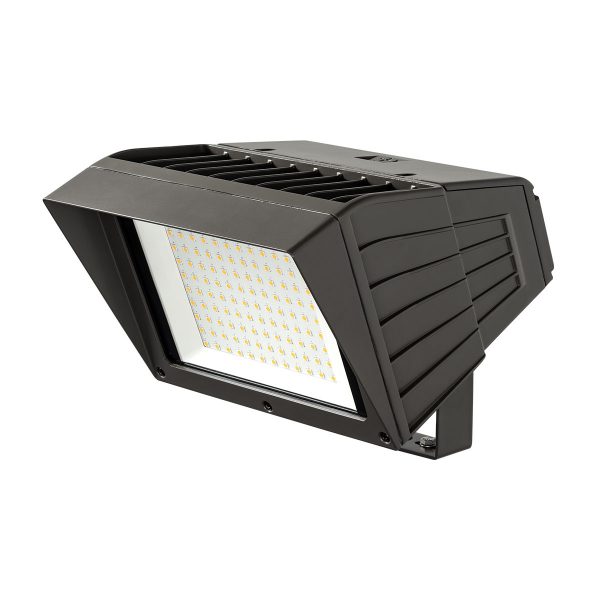

PFL2GXW - Extra-Wide 2nd Gen Flood Light Trunnion

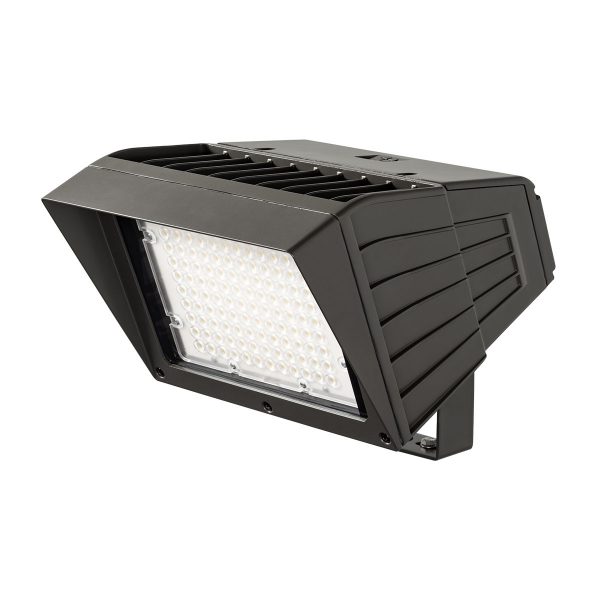

PFL2GH - Extreme Optic 2nd Gen Flood Light Trunnion

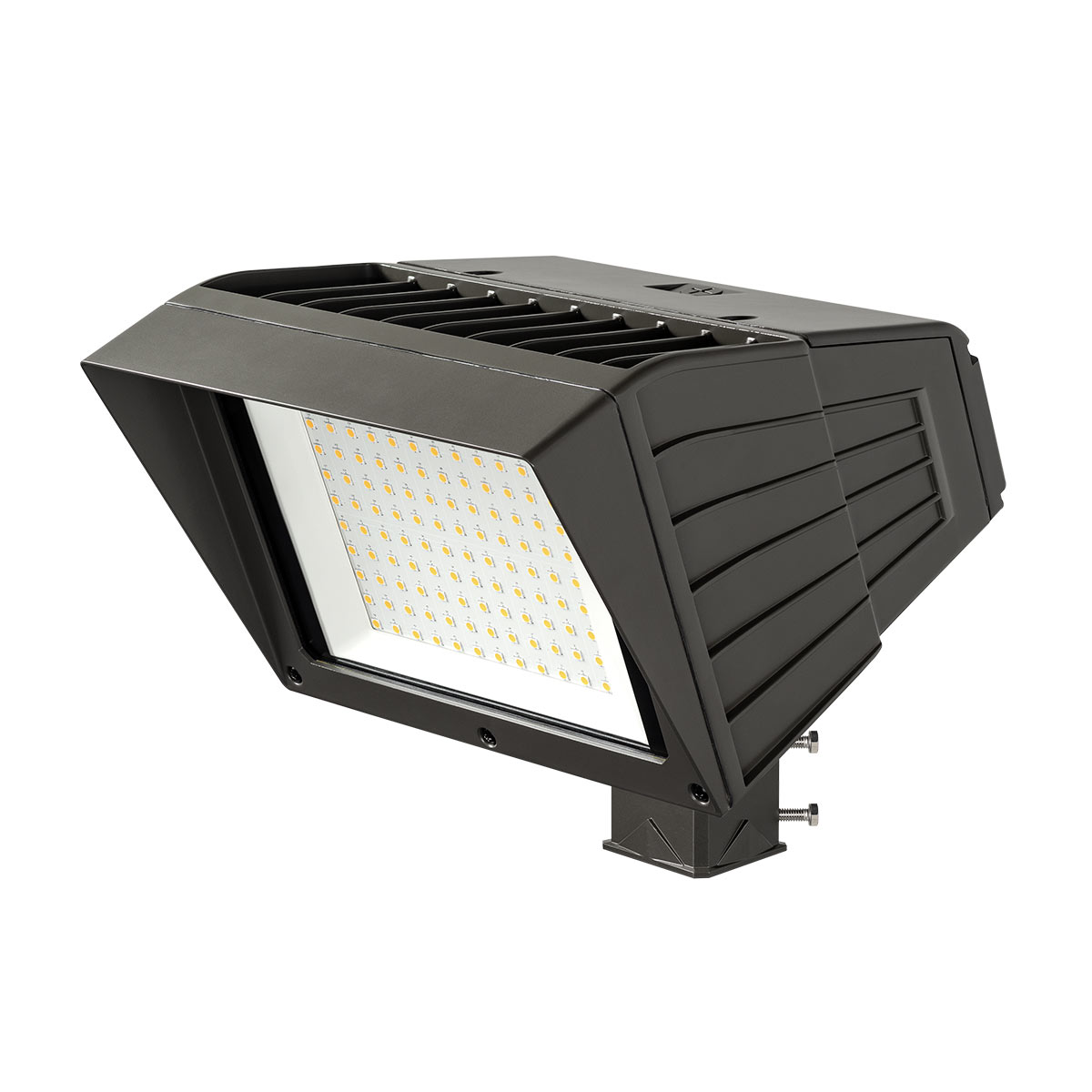

PFL2GXW - Extra-Wide 2nd Gen Flood Light Slipfitter

Flood Light Large 2nd Gen.

PFL2G

Our high‑performance LED Flood Lights are manufactured in the USA and available in a vast array of configurations that are suitable for virtually any application. The Extra-Wide version produces a traditional wide distribution pattern while the Optic version produces a narrow, focused distribution pattern that is well-suited for longer setbacks. The driver compartment is separate from the LED compartment, which reduces cross-contamination of heat and extends the fixture’s life.

All Available Sizes

Extra Large

Featured Resources

Flood Lights Cut Sheet

Ask a Question

Variations

Housing	Unit	CRI	3000K CCT		4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Unit	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
PFL2GH	20L	70	20,200	142	21,338	150	21,338	150	21,534	152	142	400W MH
PFL2GH	25L	70	24,840	138	26,240	147	26,240	147	26,480	148	180	1000W MH
PFL2GXW	20L	70	20,540	144	20,540	144	20,540	144	11,140	153	142	400W MH
PFL2GXW	25L	70	25,040	139	25,040	139	25,040	139	25,040	139	180	1000W MH

Features & Specifications

Extra-Wide version produces a wide, smooth light distribution similar to HID floods.
Optic version produces a focused, narrow pattern ideal for longer setbacks.
Heavy-duty mounting options include both Trunnion and Slipfitter.
Utilizes a die‑cast aluminum housing with airflow fins for heat dissipation.
The driver compartment is separate from the LED compartment, which reduces cross-contamination of heat and extends the fixture’s life.
Energy-efficient design saves money on energy costs.
Product series includes a variety of other housing sizes and configurations.
