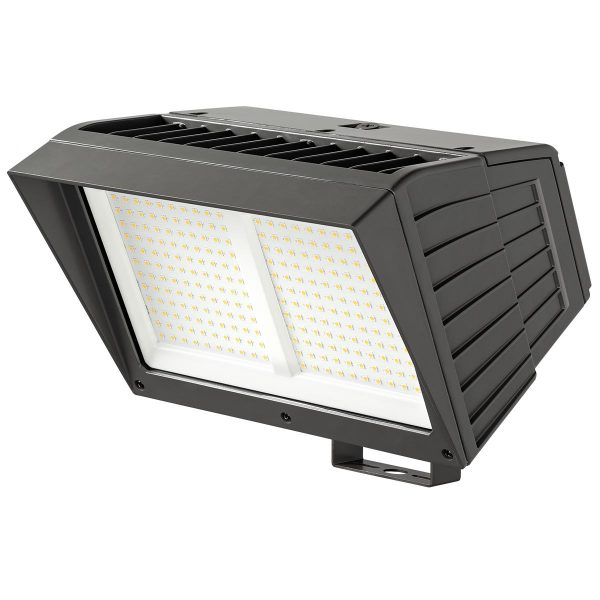

PFXL2GXW - Extra-Wide 2nd Gen Flood Light XL Trunnion

PFXL2GXW - Extra-Wide 2nd Gen Flood Light XL Slipfitter

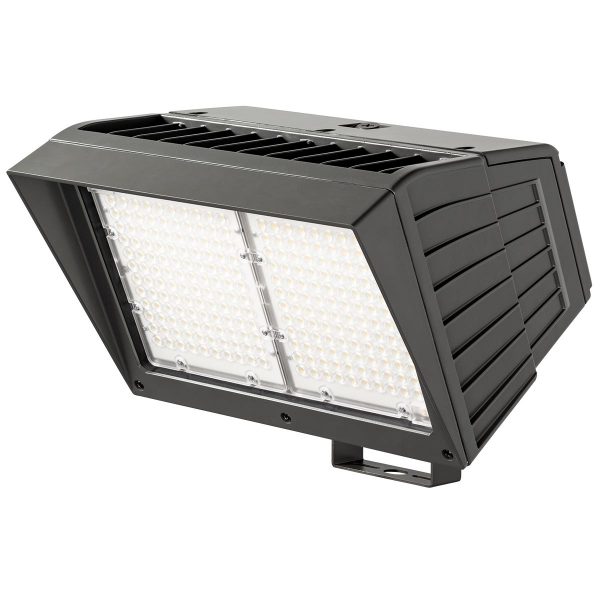

PFXL2GH - Extreme Optic 2nd Gen Flood Light XL Trunnion

Flood Light Extra Large 2nd Gen.

PFXL2G

Our high‑performance LED Flood Lights are manufactured in the USA and available in a vast array of configurations that are suitable for virtually any application. The Extra-Wide version produces a traditional wide distribution pattern while the Optic version produces a narrow, focused distribution pattern that is well-suited for longer setbacks. The driver compartment is separate from the LED compartment, which reduces cross-contamination of heat and extends the fixture’s life.

All Available Sizes

Large

Featured Resources

Flood Lights Cut Sheet

Ask a Question

Variations

Housing	Unit	CRI	3000K CCT		4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Unit	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
PFXL2GH	33L	70	31190	151	32849	151	32849	151	33408	151	219	1000W MH
	40L	70	37020	139	38989	147	38989	147	39653	149	266	1000W MH
	50L	70	47390	132	49910	141	49910	141	50760	142	355	1000W MH
PFXL2GXW	33L	70	33210	151	33210	151	33210	151	33210	151	220	1000W MH
	40L	70	39430	148	39430	148	39430	148	39430	148	267	1000W MH
	50L	70	50130	141	50130	141	50130	141	50130	141	357	1000W MH

Features & Specifications

Extra-Wide version produces a wide, smooth light distribution similar to HID floods.
Optic version produces a focused, narrow pattern ideal for longer setbacks.
Heavy-duty mounting options include both Trunnion and Slipfitter.
Utilizes a die‑cast aluminum housing with airflow fins for heat dissipation.
The driver compartment is separate from the LED compartment, which reduces cross-contamination of heat and extends the fixture’s life.
Energy-efficient design saves money on energy costs.
Product series includes a variety of other housing sizes and configurations.
