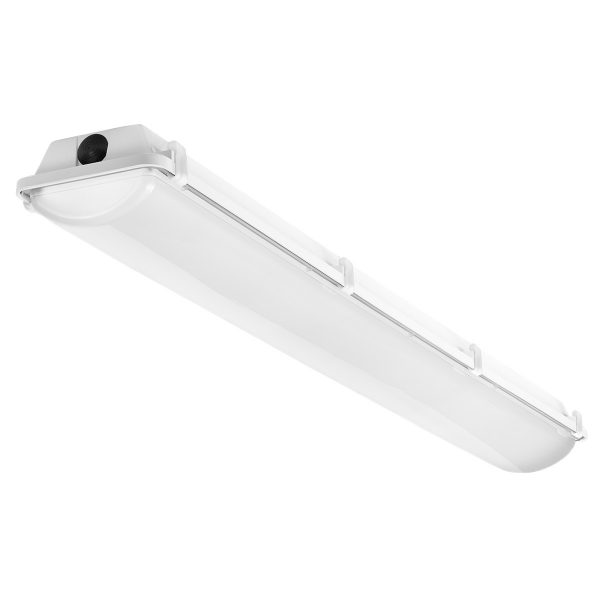

Linear Parking Garage


The Linear Parking Garage fixtures are a specialized expansion to our high-performance Wet Location lineup. These durable fixtures have been engineered specifically for the needs of Parking Garage applications while achieving unmatched performance and light quality. They achieve NSF, NEMA 4X and IP67 ratings and are also rated for up to 1,500 PSI washdown.

Ask a Question


HousingUnitLengthCRI3000K CCT4000K CCT4500K CCT5000K CCTWattageReplaces Up To
Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)
ILW48LED4 ft806,4091346,4591396,4091346,453135484L T8 FL

Features & Specifications

  • Precision optics direct the light into a longer pattern that is perfect for Parking Garage applications.
  • These fixtures feature a single-piece, rugged and durable composite housing with 1/2″ entry points on each end.
  • The impact-resistant, frosted acrylic lens provides smooth and uniform light output and protects the LEDs.
  • These fixtures feature seamless poured gaskets, which provide enhanced performance over traditional gaskets.
Max Lumens
Min Lumens
Color Temperatures
3000K 4000K 4500K 5000K
Additional Options
QuickShipDLC PremiumUS Manufactured (BAA Compliant)IP65IP66IP67DimmableUL ListedNSF

Lighting Calculation Tools
