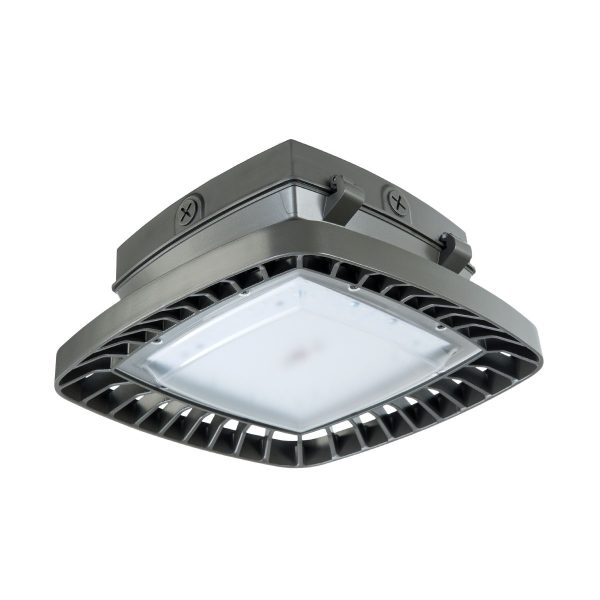

Low Profile Canopy

CPM

The Low Profile Canopy Series offers a brighter solution for a wide range of canopy applications. These energy-efficient fixtures produce a smooth and uniform light pattern that eliminates glare and wasted light. Installation is quick and easy – saving contractors time and reducing labor costs.

Ask a Question

Variations

HousingUnitCRI3000K CCT4000K CCT4500K CCT5000K CCTWattageReplaces Up To
Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)
CPM25LED833,3631373,3631373,3631373,49214225100W MH
40LED835,4521355,4521355,4011335,62613542175W MH
60LED837,6801277,6801277,5141277,78812960250W MH
80LED839,6911229,6911229,6911229,82112181400W MH

Features & Specifications

  • This slim, low-profile fixture is less than 5″ tall, making it perfect for retrofit applications or new construction.
  • The die-cast aluminum housing features external airflow fins for better heat dissipation.
  • Optimized for canopy applications, the lens produces a smooth, uniform and even light pattern.
  • The hinged design allows the fixture to hang from the mounting box, leaving your hands free to finish the installation.
Max Lumens
9,700
Min Lumens
3,400
Color Temperatures
3000K 4000K 4500K 5000K
Additional Options
QuickShipDLC PremiumUS Manufactured (BAA Compliant)DimmableUL Listed
