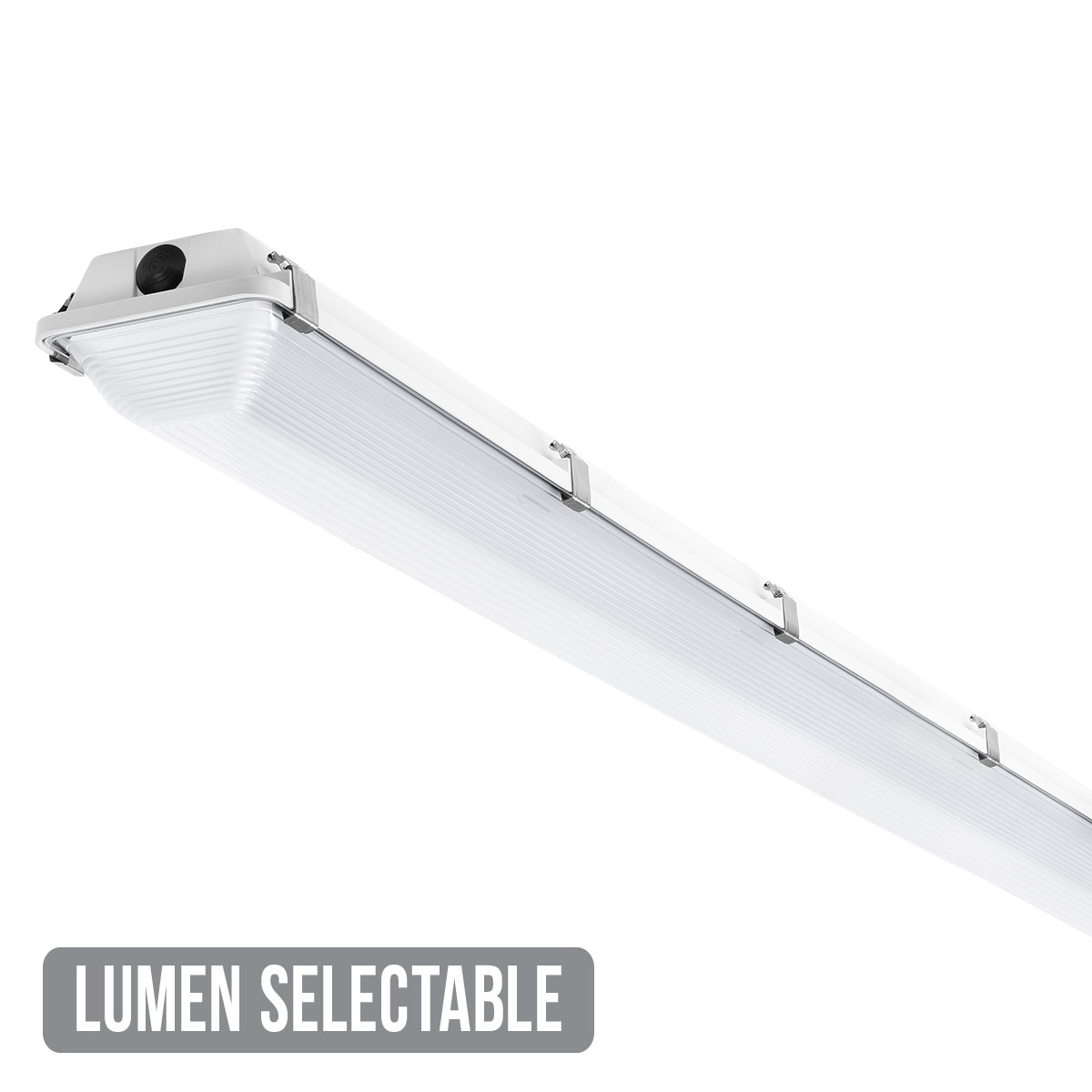

ILWS8D - Lumen Selectable Wet Location 8ft Slim

Lumen Selectable Wet Location 8ft Narrow

ILWS8D

Replace up to 3 standard 8ft wet location fixtures with just 1! These fixtures feature selectable lumen options, reducing stocking complexity and providing additional flexibility for contractors. Our LED Wet Location fixtures offer higher performance and efficiency for a wide range of lighting applications. These robust fixtures are easy to install, provide smooth light output, and are available in 5 different housing sizes in a variety of configurations.

All Available Versions

LUMEN SELECTABLE WET LOCATION RETROFIT KIT 4FT NARROW (ILWS4D)

4ft Narrow

LUMEN SELECTABLE WET LOCATION RETROFIT KIT 8FT NARROW (ILWS8D)

Featured Resources

Ask a Question

Variations

HousingUnitCRI4000K CCT4500K CCT5000K CCTWattageReplaces Up To
Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)
ILWS7-13L80684615468241536824153454L T8 FL
80103021531026915210269152684L T5 FL
80138631461381914613819146954L T5 FL

Features & Specifications

  • Replace 3 standard 8ft wet location fixtures with just 1.
  • The housing for the Wet Location series features a one-piece high-impact durable composite material.
  • The injection-molded acrylic lens with a high-impact additive is frosted to eliminate glare.
  • Maintenance is easy with 1/2″ wide entry ports on either side of the housing.
  • The large, poured-in gasket that surrounds the fixture provides a continuous seal against water ingress.
  • Product series is available in 5 different housing sizes to suit a wide array of applications.
Max Lumens
13,000
Min Lumens
7,000
Color Temperatures
4000K 4500K 5000K
Additional Options
QuickShipDLCUS Manufactured (BAA Compliant)IP65IP66IP67DimmableUL ListedBattery BackupLumen SelectableNSF
