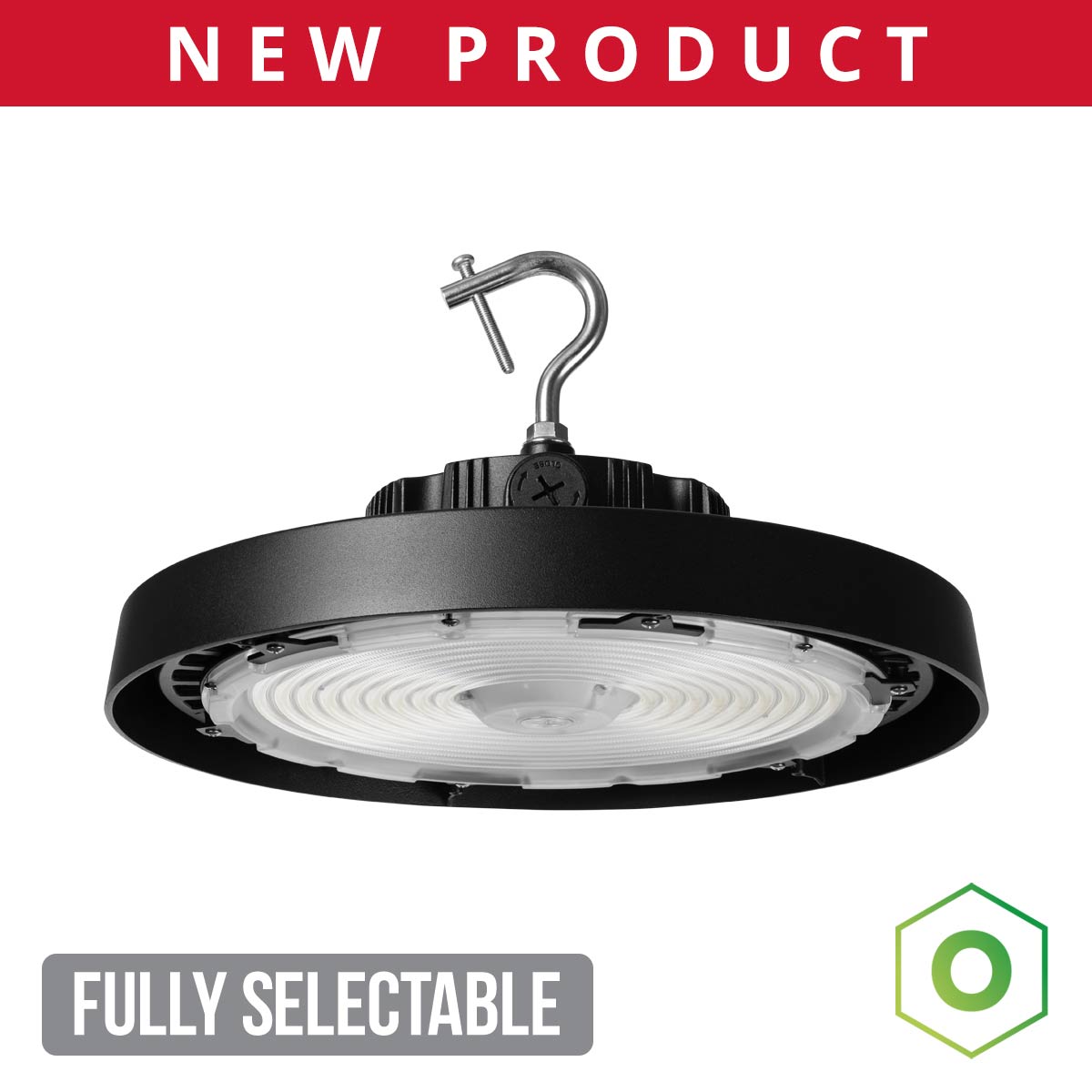

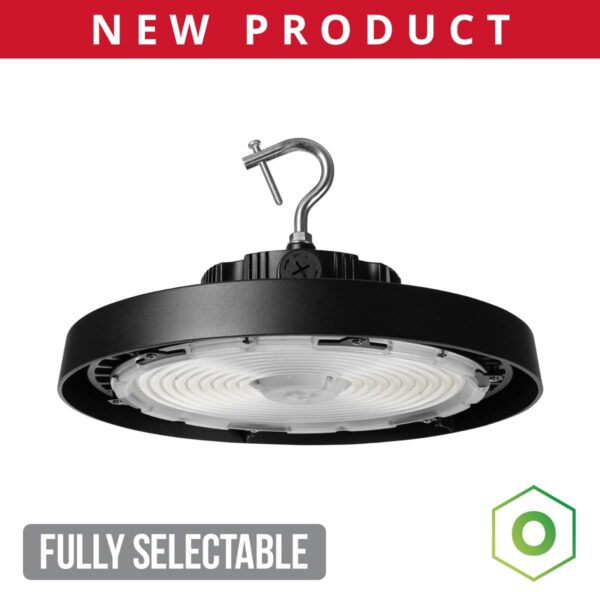

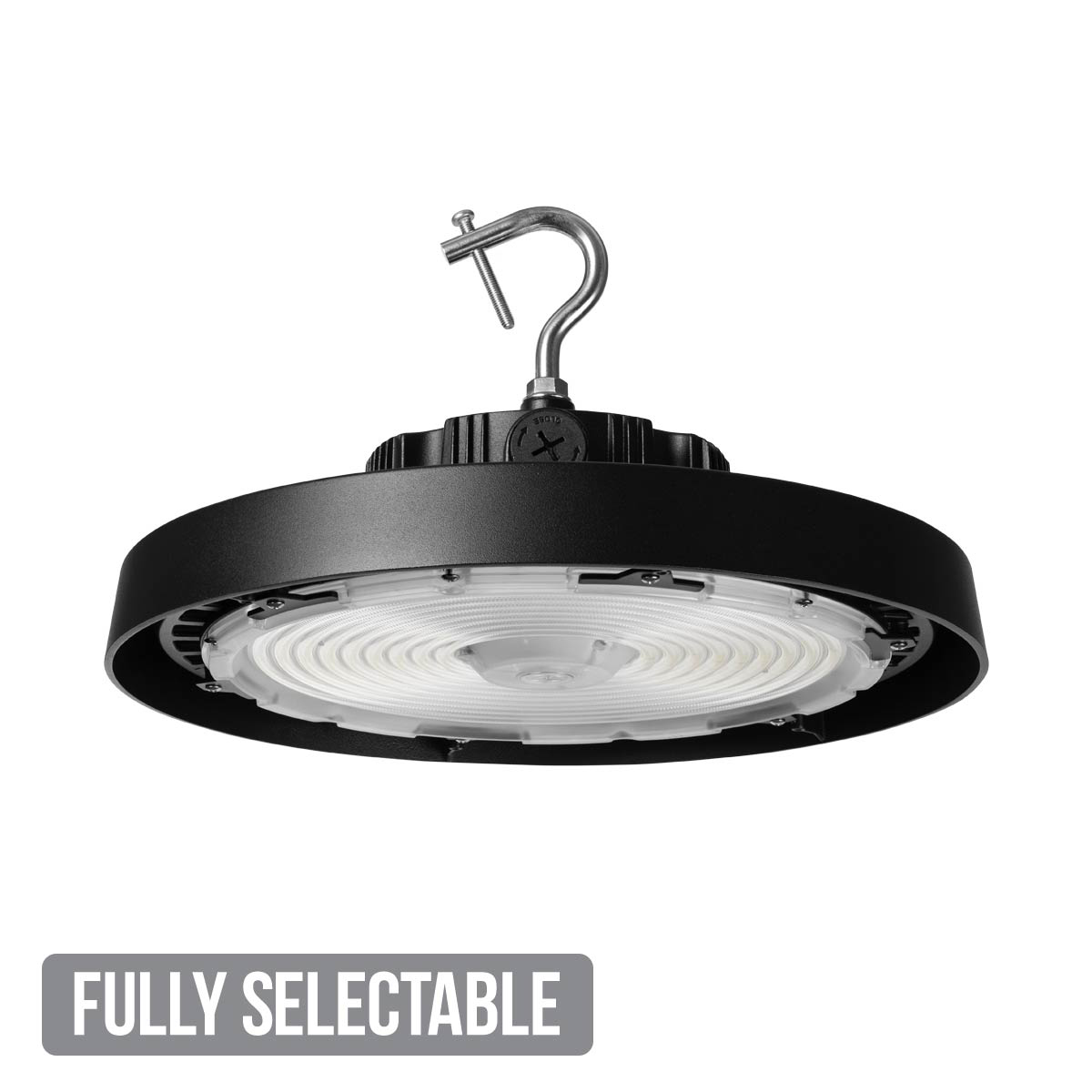

Fully Selectable Round High Bay

ORRHS

Replace up to 6 standard fixtures with just 1! ThIS Fully Selectable LED Round High Bay features both selectable lumens and color temperature, which reduces stocking complexity and provides additional flexibility for contractors. This easy-to-install fixture is the perfect 1-to-1 solution when replacing existing HID lighting. The heavy duty, die-cast aluminum housing aids in heat dissipation, extending both LED and driver life.

Featured Resources

ORRHS18-30L Cut Sheet

Ask a Question

Variations

Housing	Unit	CRI	Selectable 4000K CCT		Selectable 5000K CCT		Wattage	Replaces Up To
Housing	Unit	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
ORRHS	18-30L	80	19,382	168	19,109	161	120	175W MH
		80	25,458	162	24,420	153	160	250W MH
		80	30,544	157	30,000	150	200	400W MH

Features & Specifications

Replace up to 6 standard fixtures with just 1.
Die cast aluminum housing provides a sturdy and durable structure.
Features a J-hook mounting system for easy installation and adjustment.
The fixture is center motion mount capable.
UV-stabilized power-coated finish ensures a long-lasting and corrosion- resistant exterior.
Atlas Lighting’s economy line of products are backed by the same US-based customer service and technical support teams as all other Atlas products.
