Origin Selectable Die Cast High Bay Large

ORHBS36-48L

Origin by Atlas Lighting is our economy line of products that are designed to provide a highly competitive, lower-cost entry point to LED lighting. The Origin lineup of Fully Selectable Die Cast High Bays offers a range of configurations to meet a variety of different high bay applications. These fixtures feature both selectable lumens and color temperature, reducing stocking complexity and provides additional flexibility for contractors.

All Available Sizes

12-21L

22-30L

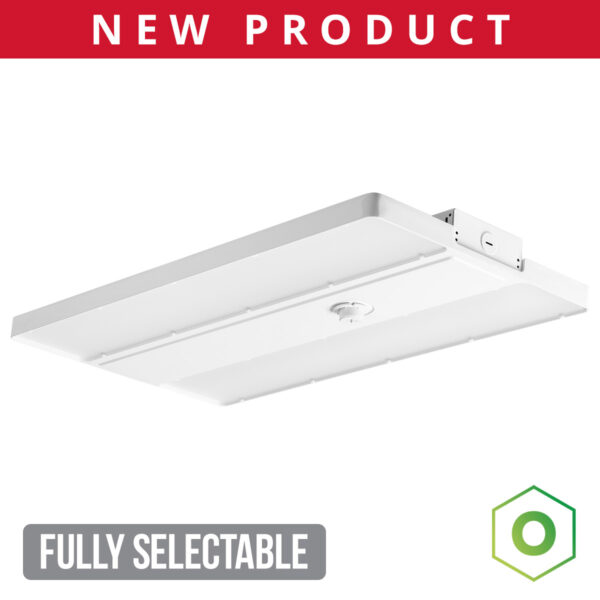

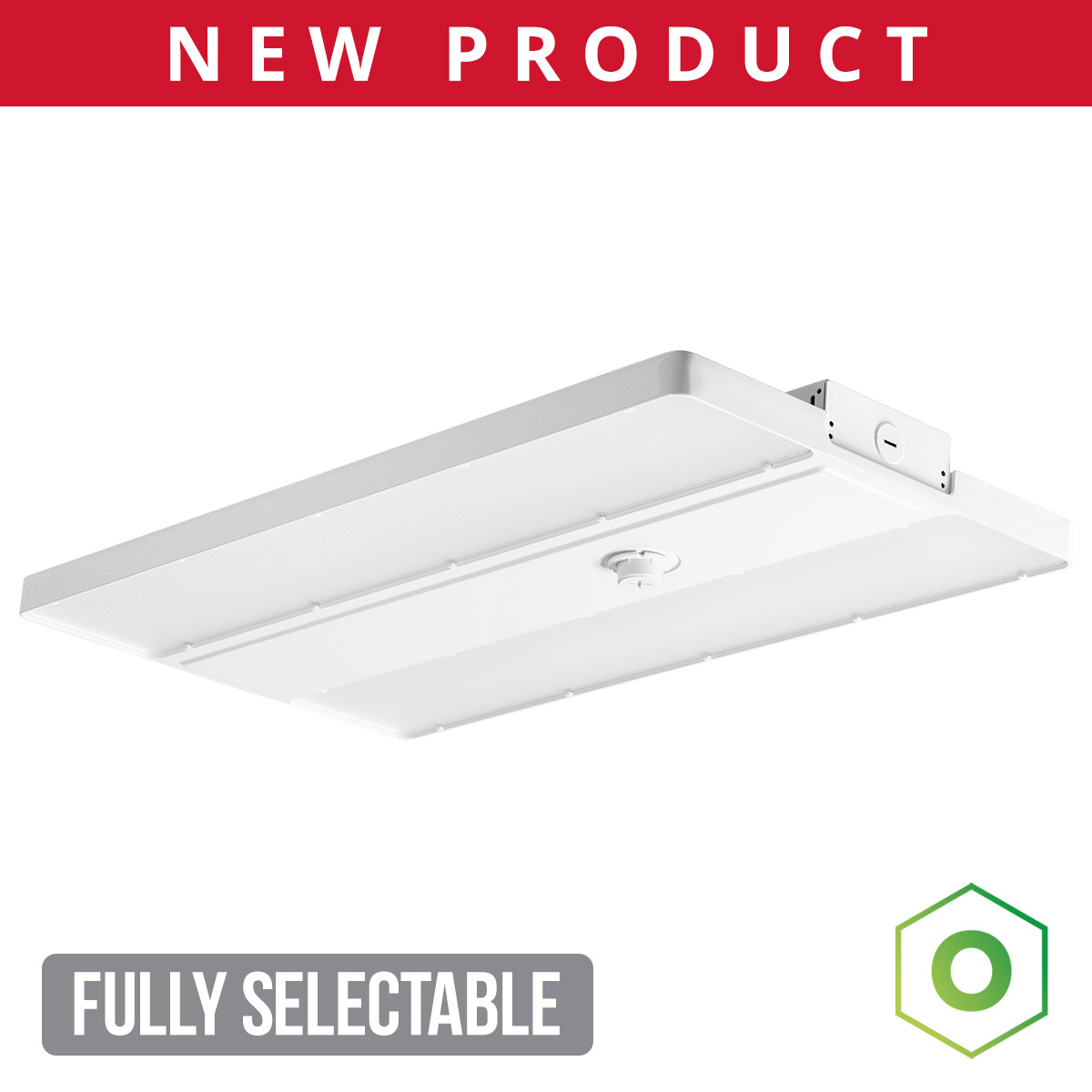

ORIGIN SELECTABLE DIE CAST HIGH BAY 36-48L (ORHBS36-48L)

Featured Resources

ORHBS Cut Sheet

Ask a Question

Variations

Housing	Unit	CRI	Selectable 4000K CCT		Selectable 5000K CCT		Wattage	Replaces Up To
Housing	Unit	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
ORHBS	36-48L	80	36,018	157	37,242	159	230	400W MH
		80	41,502	154	42,703	156	270	400W MH
		80	48,469	153	49,424	154	320	400W MH

Features & Specifications

Replace up to 6 standard high bays with just 1!
Durable die-cast aluminum construction maximizes heat dissipation in an extremely compact housing.
Energy-efficient design saves money on energy costs.
Built-in Connect Control Port requires no wiring to connect the available IRH-MOT motion sensor (sold separately).
High brightness LEDs and diffused lens create a smooth light distribution pattern.
Origin Series products are backed by the same US-based customer service and technical support teams as all other Atlas products.
Product series is available in 3 different compact housing sizes.
