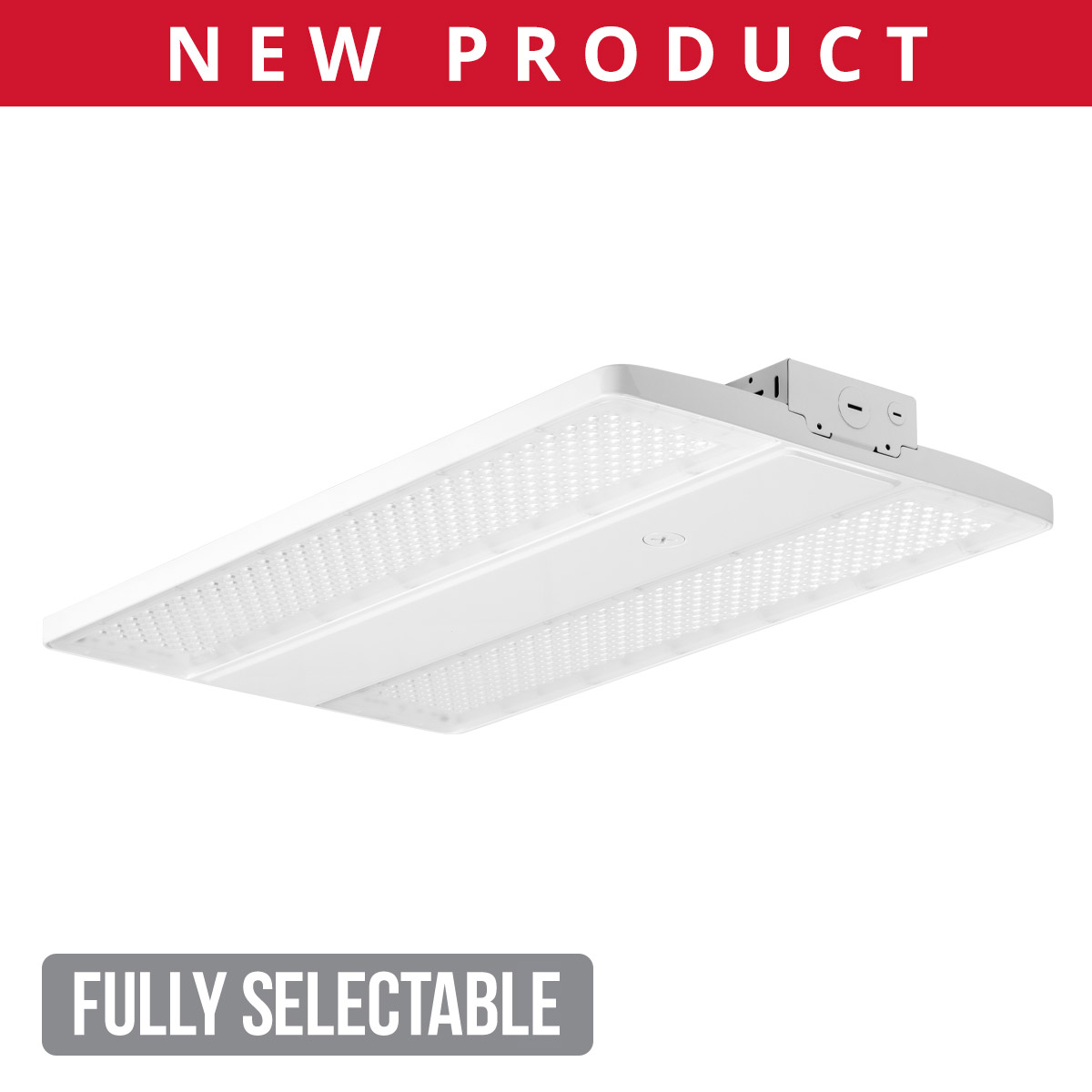

Field Configurable High Bay Large
Engineered for flexibility, these high bays offer selectable lumen output, color temperature, and optical distributions. Toggle between standard, wide, and aisle patterns to accommodate a large variety of applications.
All Available Sizes
Featured Resources
Variations
| Housing | Unit | CRI | Distribution | Selectable 3500K CCT | Selectable 4000K CCT | Selectable 5000K CCT | Wattage | Replaces Up To | |||
| Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | ||||||
| FCHB | 36-48L | 80 | Standard (65°) | 35,814 | 169 | 37,073 | 178 | 36,282 | 170 | 220 | 400W MH |
| 41,768 | 164 | 43,533 | 174 | 43,068 | 166 | 270 | 750W MH | ||||
| 47,711 | 158 | 49,189 | 168 | 48,482 | 160 | 320 | 750W MH | ||||
Features & Specifications
- Features selectable lumen, CCT, and distribution options in a single fixture.
- High-grade die-cast aluminum with a durable white powder coat finish
- Injection molded acrylic lens reduces glare.
- Selectable Optical Distributions: Wide (90°), Standard (65°), Aisle (45°)
- Atlas Lighting’s economy line of products are backed by the same US-based customer service and technical support teams as all other Atlas products.
- Product series is available in 3 different compact housing sizes.
Max Lumens
49,189Min Lumens
35,814Color Temperatures
Selectable 3500K 4000K 5000KAdditional Options
