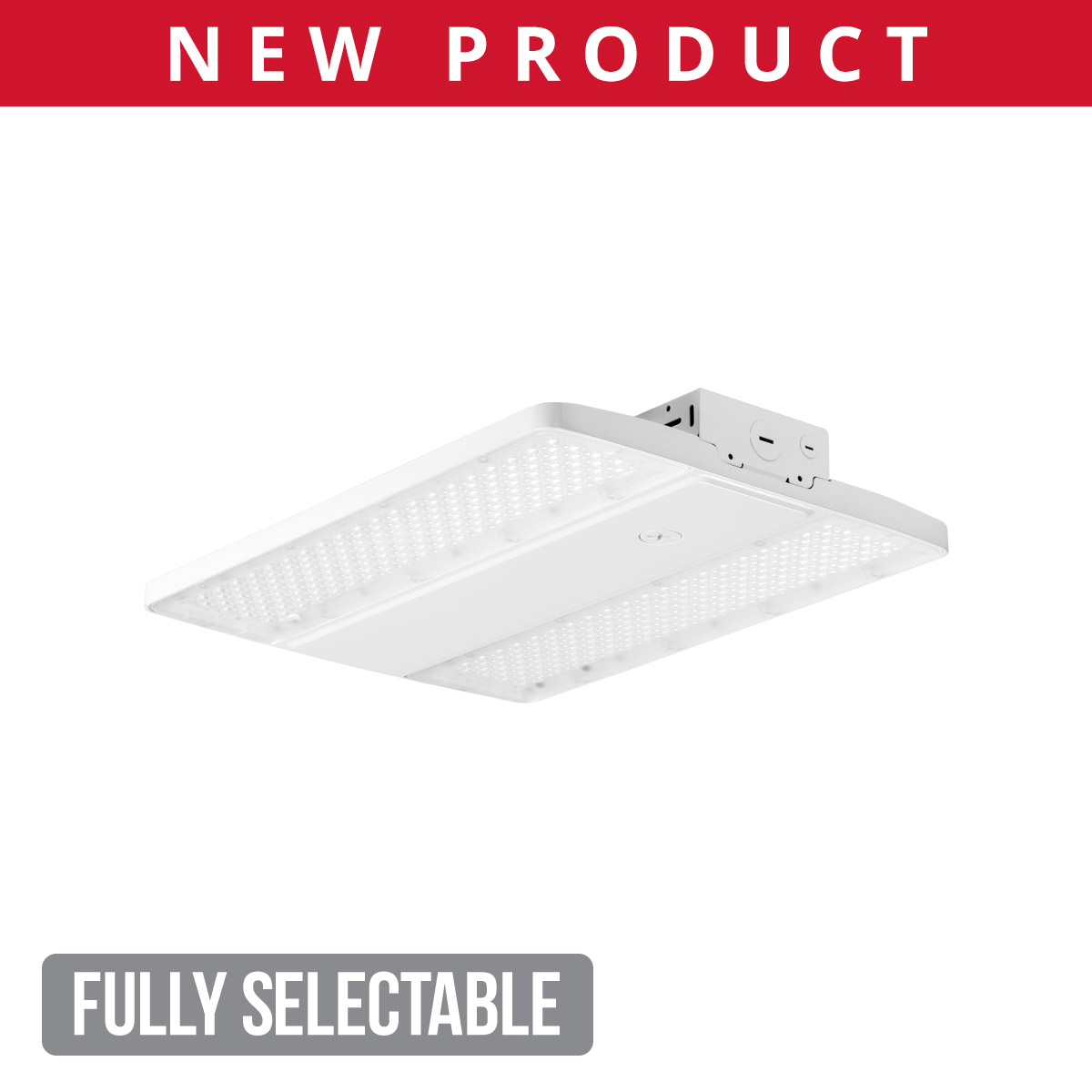

Field Configurable High Bay Small

FCHB12-20L

Engineered for flexibility, these high bays offer selectable lumen output, color temperature, and optical distributions. Toggle between standard, wide, and aisle patterns to accommodate a large variety of applications.

All Available Sizes

Medium

Large

Featured Resources

FCHB Cut Sheet

Ask a Question

Variations

Housing	Unit	CRI	Distribution	Selectable 3500K CCT		Selectable 4000K CCT		Selectable 5000K CCT		Wattage	Replaces Up To
				Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)
FCHB	12-20L	80	Standard (65°)	12,829	169	13,130	176	13,024	171	75	175W MH
				16,697	163	17,153	171	16,895	165	105	250W MH
				19,540	157	20,060	165	19,697	158	130	400W MH

Features & Specifications

Features selectable lumen, CCT, and distribution options in a single fixture.
High-grade die-cast aluminum with a durable white powder coat finish
Injection molded acrylic lens reduces glare.
Selectable Optical Distributions: Wide (90°), Standard (65°), Aisle (45°)
Atlas Lighting’s economy line of products are backed by the same US-based customer service and technical support teams as all other Atlas products.
Product series is available in 3 different compact housing sizes.
