Dual Deal Pole Combo

PXSLP

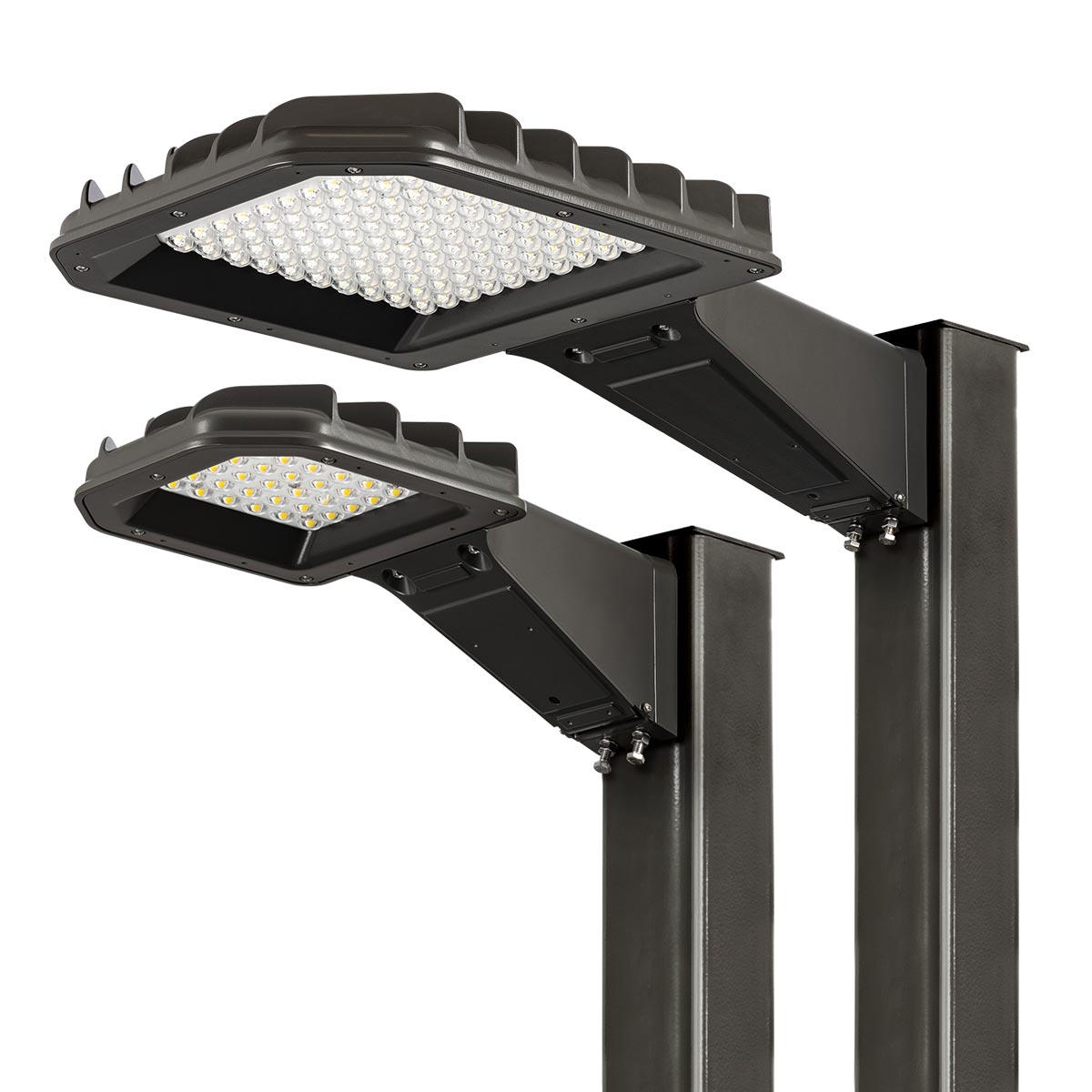

Simple and easy – Atlas offers our best Eagle Series LED Area Lights with our highest quality poles! The Eagle Series Area Lights are offered in a variety of lumen packages, configurations, color temperatures and distributions. The included poles feature durable steel construction and an array of available lengths and pole base options.

Ask a Question

Variations

FixtureLumen PackageDistributionCRI4000K CCT4500K CCT5000K CCTWattageReplaces Up To
Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)
PXSLPS6-12LFT705,8991405,8591395,85913942250W MH
T5705,8121385,8121385,812138
FT708,7431388,6841378,68413763
T5708,6141368,6141368,614136
FT7011,48813411,41013311,41013386
T57011,31913211,31913211,319132
PXSLPM18LT37019,48916018,49315218,493152122400W
FT7019,18215718,20114918,201149
T57019,65016118,64515318,645154
24LT37025,42514924,12514124,125141171400W
FT7025,02514623,74513923,745139
T57025,63515024,32414224,324142
43LT37042,07015341,57515141,5751512751000W
FT7041,61715141,12715041,127150
T57042,47015441,97015241,970152
50LT37049,19014848,32414548,3241453331000W
FT7047,89114447,04814247,048142
T57049,52414948,65214648,652146

Features & Specifications

  • Area lights offered in 6 different lumen packages up to 50K lumens.
  • Available with Single, Double, Triple and Quad configurations.
  • Pole features Square Straight Steel construction and 4″ 11 gauge wall thickness.
  • The poles are available in 12′, 15′, 20′ and 25′ lengths.
  • Included pole base accommodates 8″-11″ bolt circles using four 3/4″ diameter anchor bolts.
  • Both pole and area lights are manufactured in the US for Quick Ship ability.
  • All configurations are available less anchor bolts (anchor bolts available to ship before product).
  • See cut sheet for full details.
Max Lumens
50,000
Min Lumens
9,000
Color Temperatures
4000K 4500K 5000K
Additional Options
DLC PremiumUS Manufactured (BAA Compliant)DimmableUL Listed
