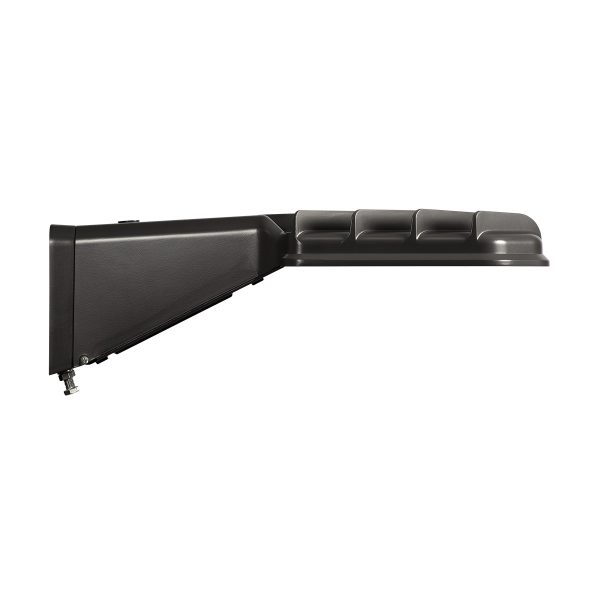

Eagle Series Lumen Selectable Area Light Small

SLPSS

These area lights feature user‑selectable lumen output, effectively replacing 3 standard fixtures with just 1. The die-cast aluminum housing features external airflow fins and a separate driver compartment help to reduce operating temperatures. A wide array of optical patterns and configurations ensure the perfect fit for virtually any area lighting application.

Ask a Question

Variations

Lumen PackageDistributionCRI4000K CCT4500K CCT5000K CCTWattageReplaces Up To
Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)
6-12LT2706,0361436,0361436,03614342175W MH
FT705,8991405,8591395,859139
T5705,8121385,8121385,812138
T2708,9461428,9461428,94614263175W MH
FT708,7431388,6841378,684137
T5708,6141368,6141368,614136
T27011,75513711,75513711,75513786250W MH
FT7011,48813411,41013311,410133
T57011,31913211,31913211,319132

Features & Specifications

  • Replace 3 standard area lights with just 1 fixture.
  • Advanced single-piece acrylic optics ensure smooth light coverage.
  • Available distribution patterns include Types II, V and Forward Throw.
  • On most distributions, the optics can be rotated to change the direction of the light pattern.
  • Universal Bracket System makes installation to any style pole quick and easy.
Max Lumens
12,000
Min Lumens
6,000
Color Temperatures
4000K 4500K 5000K
Additional Options
BluetoothDLCUS Manufactured (BAA Compliant)DimmableUL ListedLumen Selectable
