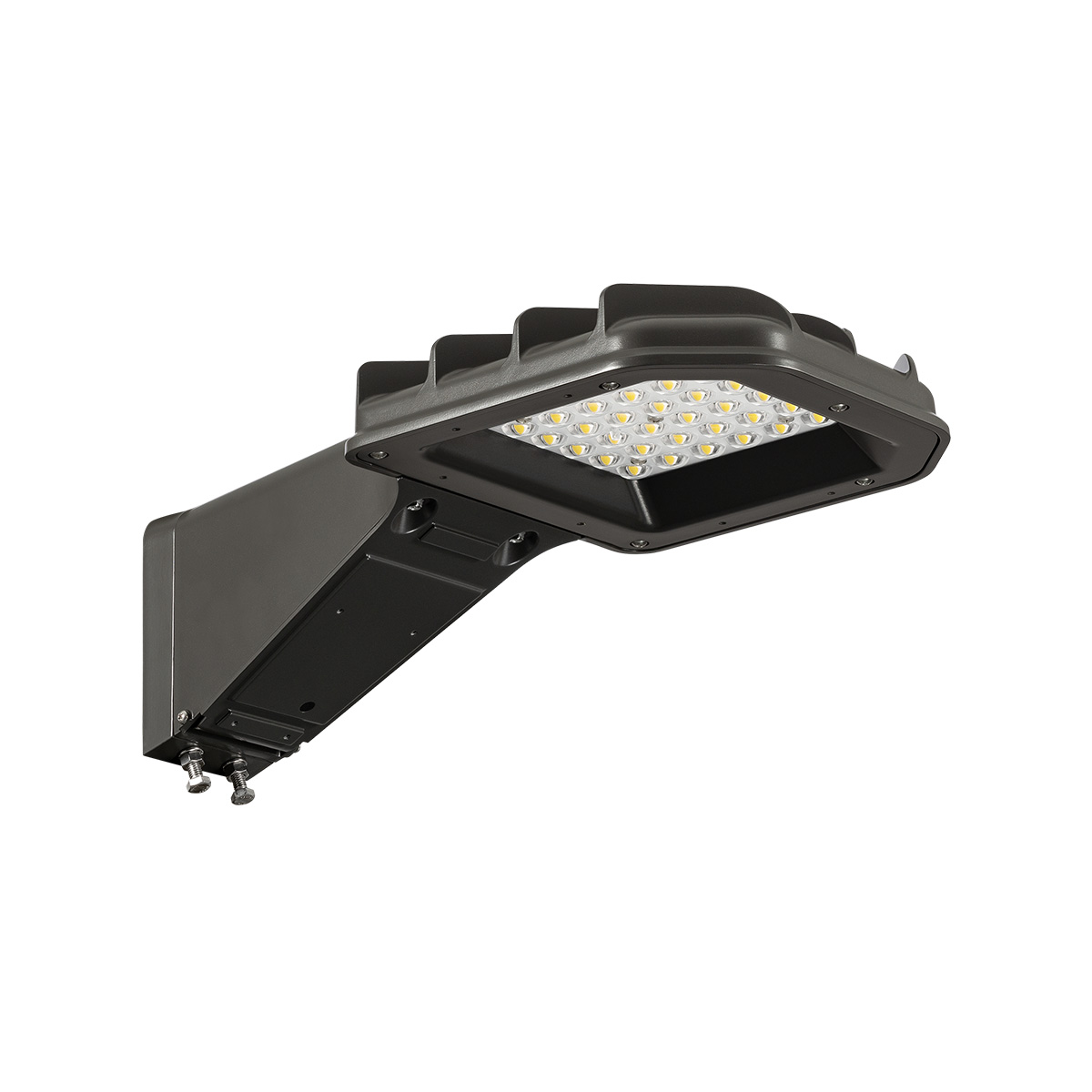

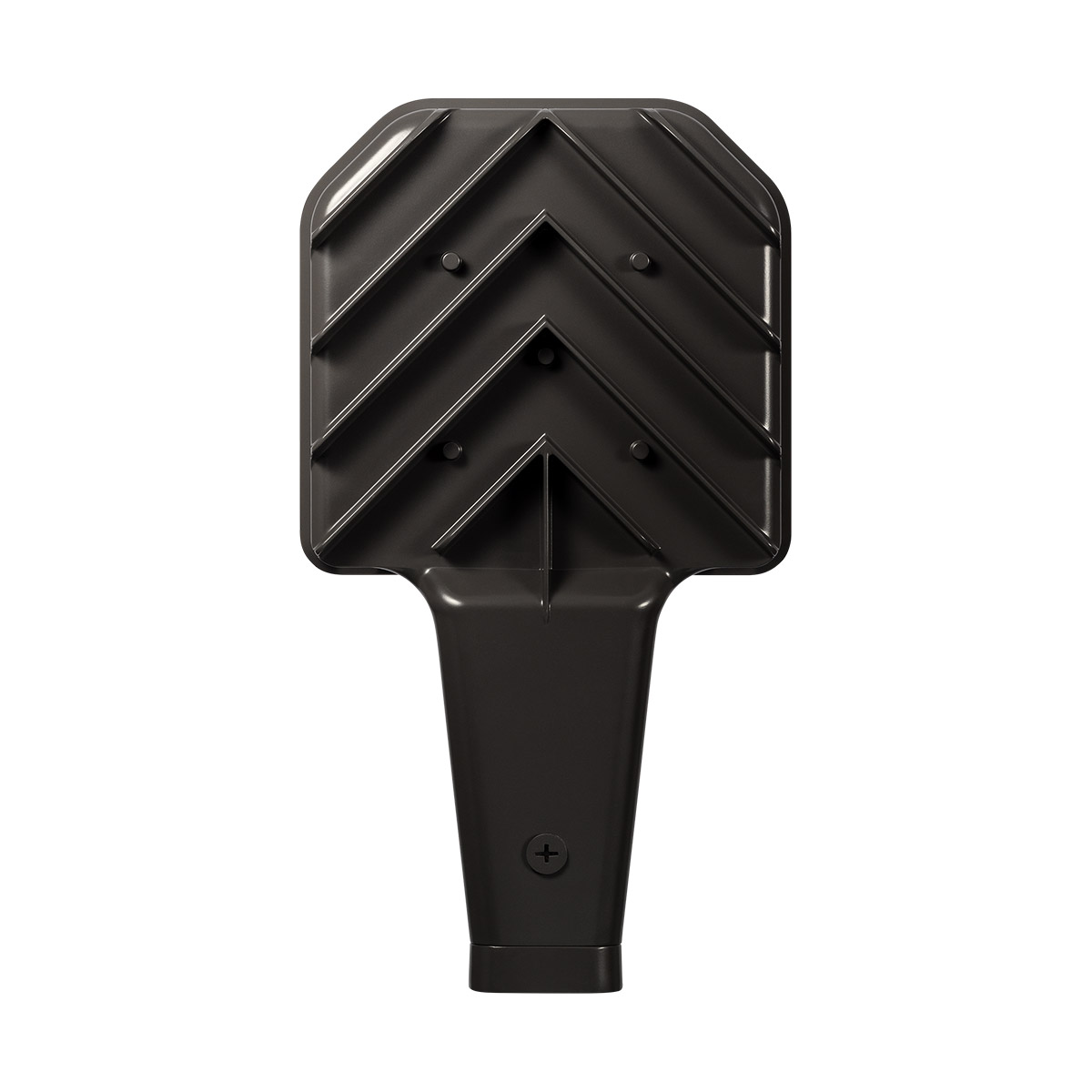

SLPS - Eagle Series Area Light Small Top View

Eagle Series Area Light Small

SLPS

These high-performance area lights feature a durable and aerodynamic housing design that is made of 100% pure aluminum. External airflow fins and a separate driver compartment help to reduce operating temperatures and extend fixture life. A wide array of optical patterns and configurations ensure the perfect fit for virtually any area lighting application.

All Available Sizes

Small

Medium

Featured Resources

SLPS Cut Sheet

Ask a Question

Variations

Lumen Package	Distribution	CRI	4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Lumen Package	Distribution	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
6L	T2	70	6,297	154	6,288	153	6,288	153	41W	175W
	FT	70	6,005	146	5,839	144	5,839	144
	T5	70	6,025	147	6,016	147	6,016	147
9L	T2	70	9,041	144	8,859	142	8,859	142	62W	175W
	FT	70	8,717	139	8,541	136	8,541	136
	T5	70	8,639	138	8,465	135	8,465	135
12L	T2	70	12,028	136	11,822	133	11,822	133	89W	250W
	FT	70	11,417	129	11,222	127	11,222	127
	T5	70	11,578	131	11,380	129	11,380	129

Features & Specifications

Advanced single-piece acrylic optics ensure smooth light coverage.
Available distribution patterns include Types II, V and Forward Throw.
On most distributions, the optics can be rotated to change the direction of the light pattern.
Universal Bracket System makes installation to any style pole quick and easy.
Product series is available in multiple housing sizes to suit a variety of applications.
