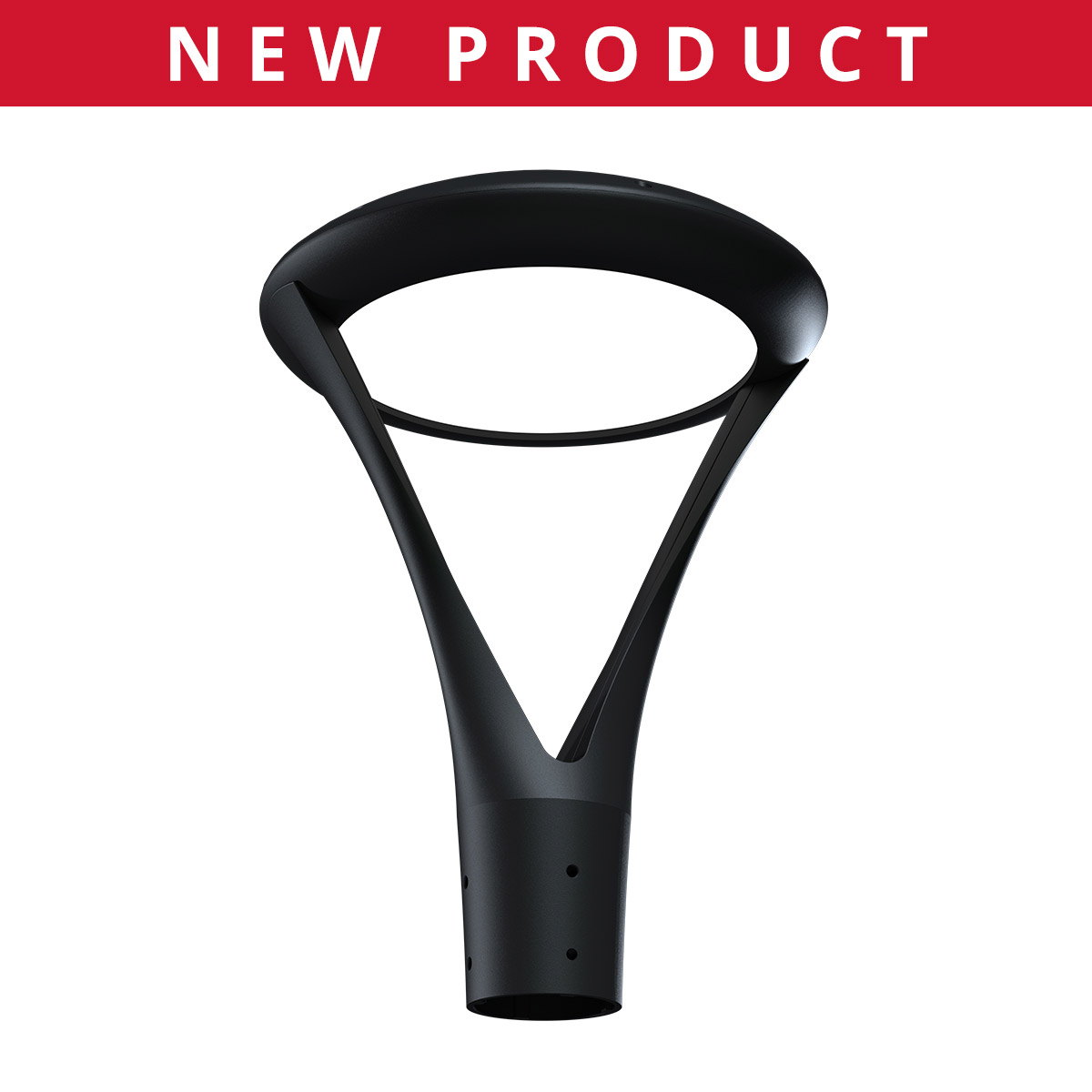

Eagle Decorative Post Top Small

EPT

The Eagle Decorative Post Top features stylish twin cast aluminum arms and base that mount directly to a 2 3/8” to 3” OD tenon. It offers virtually seamless mounting to 4” round pole with the optional flush mount adapter. Featuring a large aperture lens with a dense array of LEDs, Eagle Post Top offers best in class performance with high efficiency.

Featured Resources

EPT Cut Sheet

Ask a Question View Rebate Tool

Variations

Lumen Package	Distribution	CRI	3000K CCT		4000K CCT		4500K CCT		5000K CCT		Wattage	Bug Rating
Lumen Package	Distribution	CRI	Delivered Lumens	Efficacy (LPW)	Delivered Lumens	Efficacy (LPW)	Delivered Lumens	Efficacy (LPW)	Delivered Lumens	Efficacy (LPW)	Wattage	Bug Rating
8L	5Q	80	7,790	141	7,974	145	8,056	145	8,080	146	55	B3‑U3‑G1
	4F		7,720	140	7,901	143	7,982	143	8,006	145		B2‑U3‑G1
	3W		7,692	140	7,874	143	7,955	143	7,979	145		B2‑U3‑G2
	5D		7,173	130	7,342	133	7,417	133	7,439	134		B2‑U3‑G1
10L	5Q	80	9,823	139	10,055	143	10,156	143	10,188	144	70	B3‑U3‑G1
	4F		9,735	138	9,965	141	10,065	141	10,097	143		B2‑U3‑G2
	3W		9,701	138	9,930	141	10,029	141	10,062	143		B2‑U3‑G2
	5D		9,045	128	9,258	131	9,351	131	9,381	132		B3‑U3‑G2
14L	5Q	80	13,538	134	13,857	138	13,996	138	14,041	140	100	B3‑U3‑G2
	4F		13,415	133	13,732	137	13,869	137	13,915	139		B2‑U3‑G2
	3W		13,369	133	13,685	137	13,822	137	13,866	139		B3‑U3‑G3
	5D		12,465	124	12,759	127	14,416	143	12,928	129		B3‑U3‑G2

See cut sheet for full performance specifications.

Features & Specifications

Rugged, die-cast aluminum housing features clean architectural styling.
Smaller Size w/Visual Comfort Optics that are Ideal for Pedestrian Scale Applications.
3 Standard Lumen Packages and Factory Programmable Drivers for Custom Lumen Outputs
4 Available CCTs at 80 CRI
