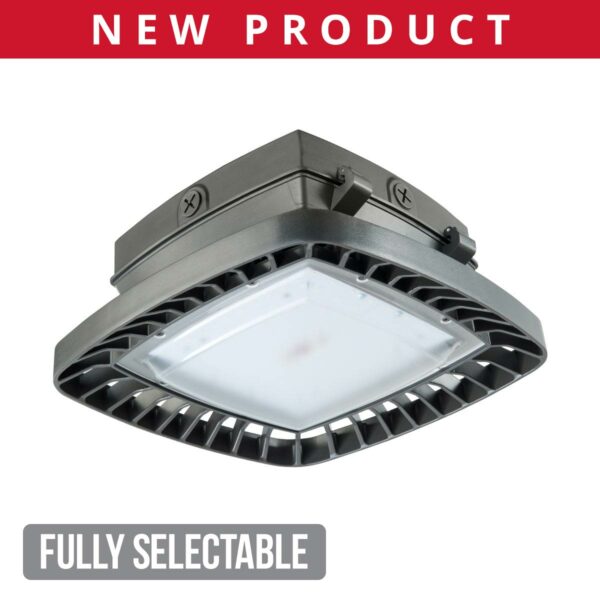

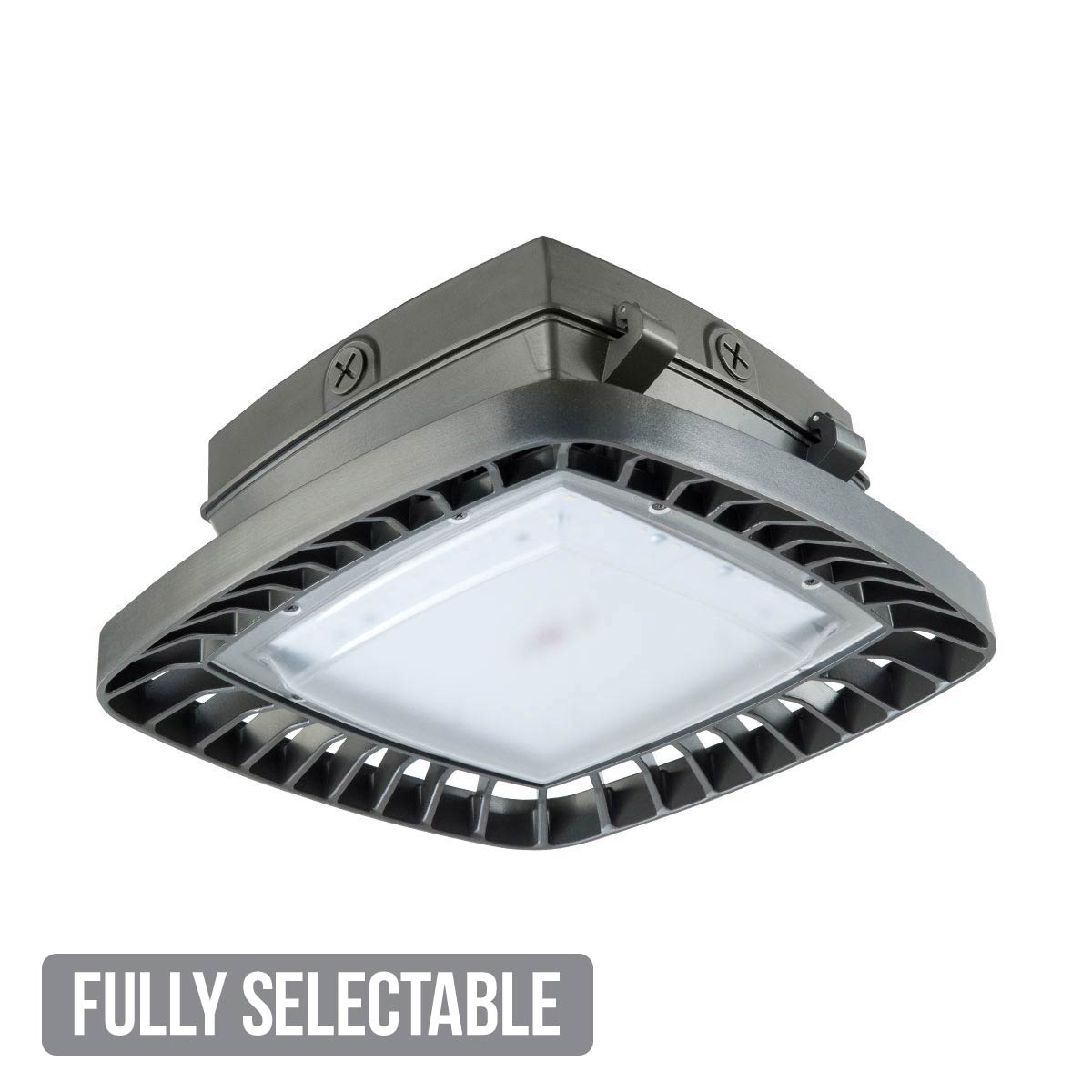

Fully Selectable Low Profile Canopy

CPMS

The Low Profile Canopy Series offers a brighter solution for a wide range of canopy applications. These energy-efficient fixtures produce a smooth and uniform light pattern that eliminates glare and wasted light. Installation is quick and easy – saving contractors time and reducing labor costs.

All Available Versions

Parking
Garage

Featured Resources

CPM Cut Sheet

Ask a Question

Variations

Housing	Unit	CRI	Selectable 4000K CCT		Selectable 4500K CCT		Selectable 5000K CCT		Wattage	Replaces Up To
Housing	Unit	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
CPMS	3-12L	80	3217	141	3323	145	3213	140	23	100W MH
		80	6797	147	7020	152	6788	147	46	175W MH
		80	9867	145	10190	149	9854	145	68	250W MH
		80	11621	142	12002	153	11606	142	82	400W MH

Features & Specifications

Replace 1 traditional flood lights with just 1!
The die-cast aluminum housing features external airflow fins for better heat dissipation.
This slim, low-profile fixture is less than 5″ tall, making it perfect for retrofit applications or new construction.
The die-cast aluminum housing features external airflow fins for better heat dissipation.
Optimized for canopy applications, the lens produces a smooth, uniform and even light pattern.
The hinged design allows the fixture to hang from the mounting box, leaving your hands free to finish the installation.
