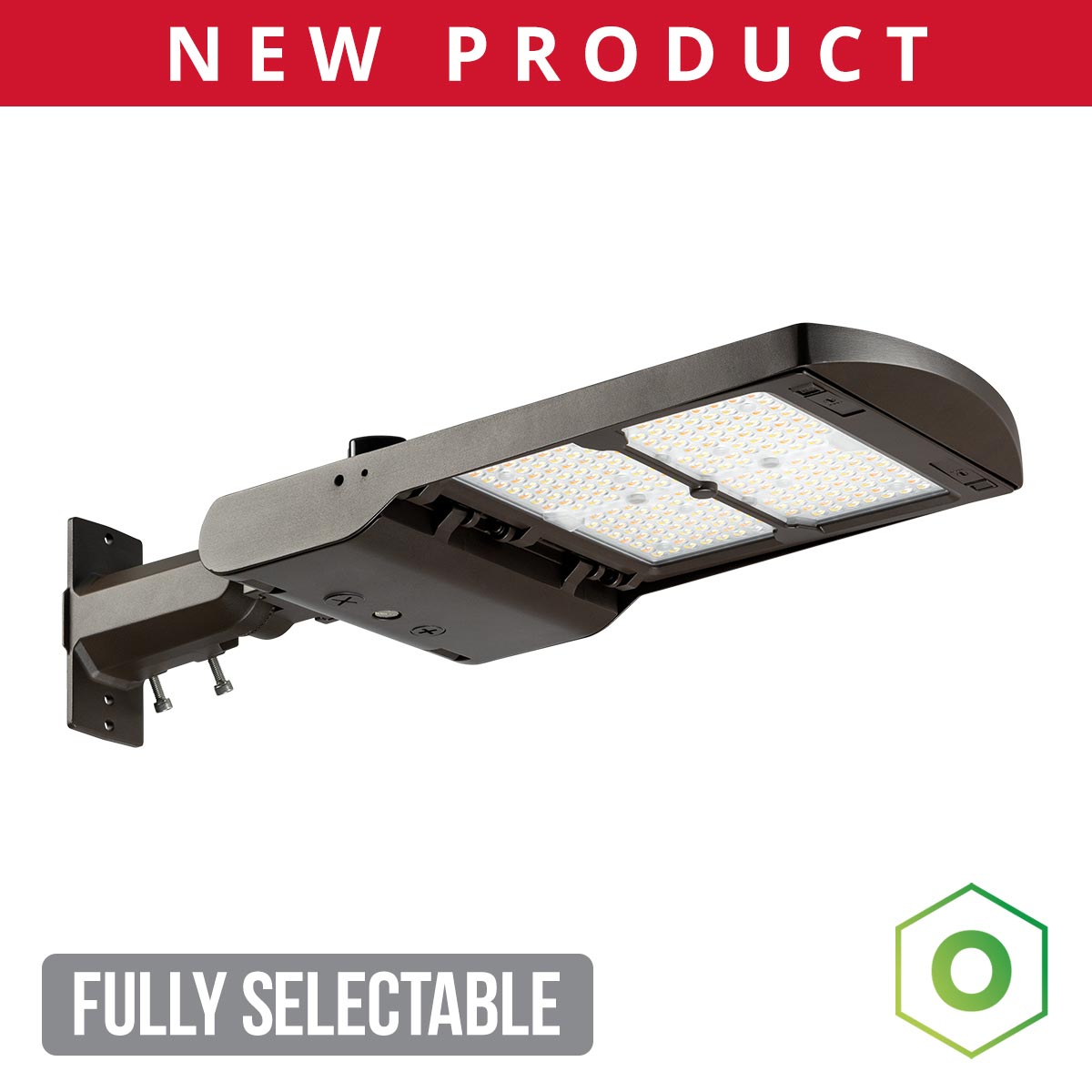

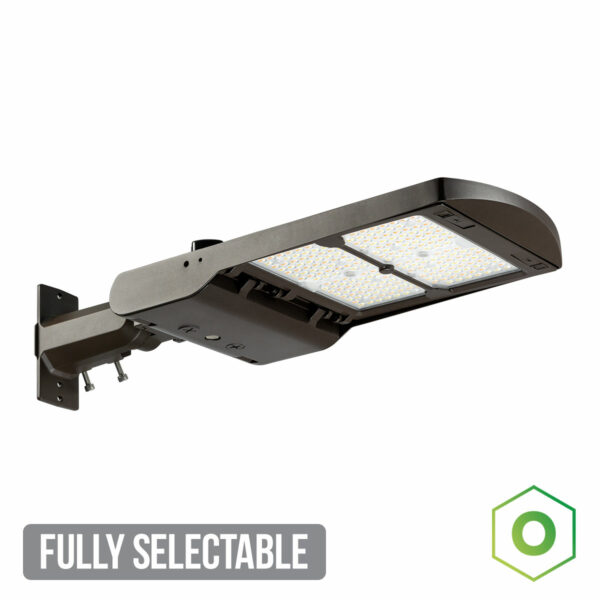

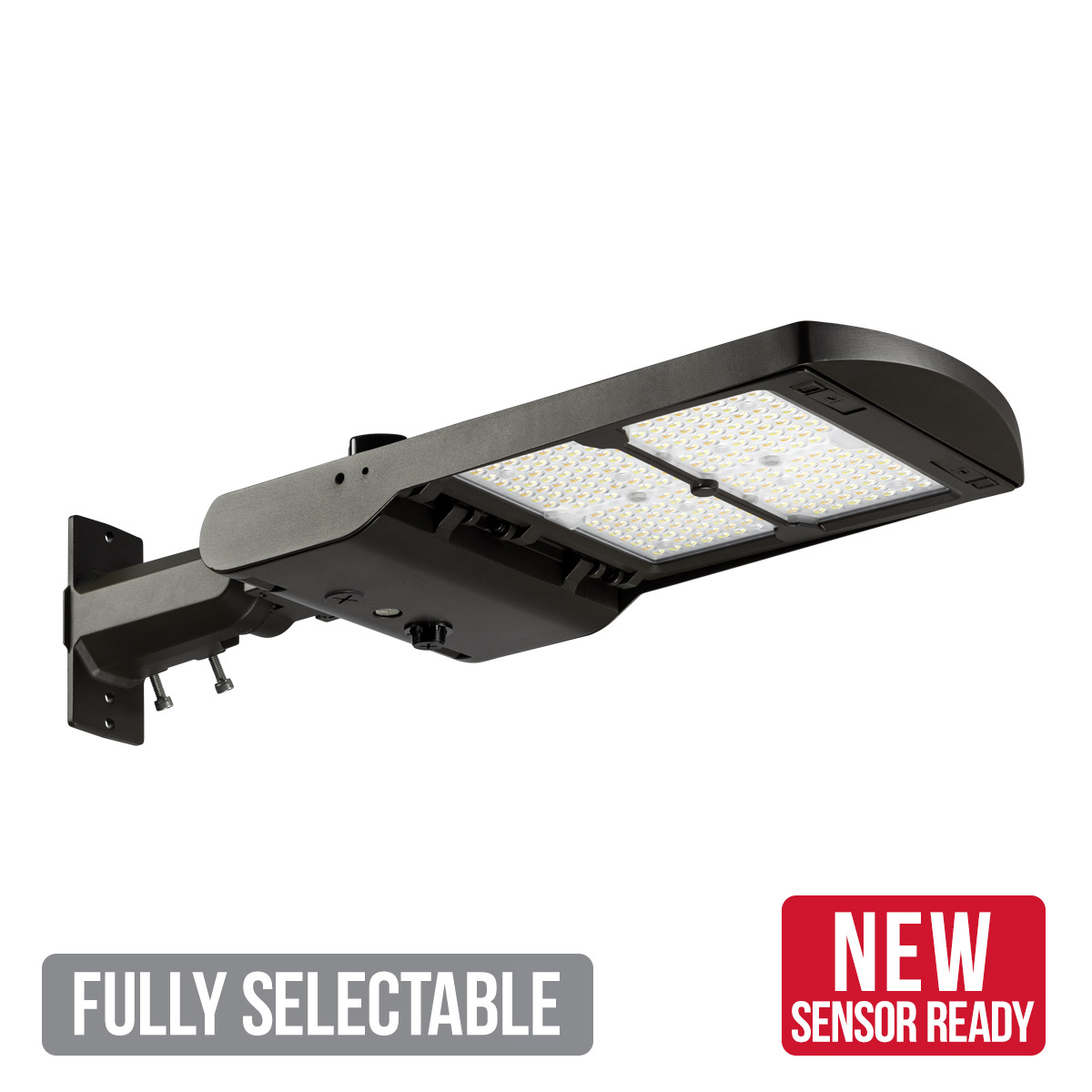

Fully Selectable Area Light Small

ORASEL15-22L

The Fully Selectable Area Lights are fully customizable with selectable lumens and color temperature, which reduces stocking complexity and provides additional flexibility for contractors. The included Multi-Mount Bracket enables round pole, square pole and slipfitter mounting. Changing distribution patterns is a snap with the Snap-Tight Magnetic System, with Type III pre-installed and Type V & FT (T4) included in the carton.

All Available Sizes

ORIGIN SERIES FULLY SELECTABLE AREA LIGHT SMALL (ORASEL15-22L)

Medium

Featured Resources

ORASEL Cut Sheet

Ask a Question

Variations

Housing	Lumen Package	Distribution	CRI	3000K CCT		4000K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Lumen Package	Distribution	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
ORASEL	15-22L	T3	80	14,836	146	15,306	155	15,415	152	100	250W
		T4 (FT)		15,136	145	15,961	158	15,592	152
		T5		15,390	152	15,908	159	16,104	157
		T3		17,526	142	18,130	152	18,076	148	120	400W
		T4 (FT)		17,722	144	18,585	156	17,863	147
		T5		17,979	148	18,670	157	18,817	153
		T3		20,834	138	21,551	148	21,347	142	150	400W
		T4 (FT)		21,412	139	21,763	152	21,472	143
		T5		22,349	142	23,287	152	23,205	145

Features & Specifications

Features multiple selectable lumen packages and color temperatures in a single fixture.
Included Multi-Mount Bracket enables round pole, square pole and slipfitter mounting.
Offers 180º of mounting angle adjustment.
Snap-Tight Magnetic System makes changing the optics easy.
Type III pre-installed, Type V & FT (T4) included in the carton.
Photocontrol and Shorting Cap are included.
Durable, die-cast aluminum construction ensures fixture longevity.
10kV/10kA External Surge Protection Standard
