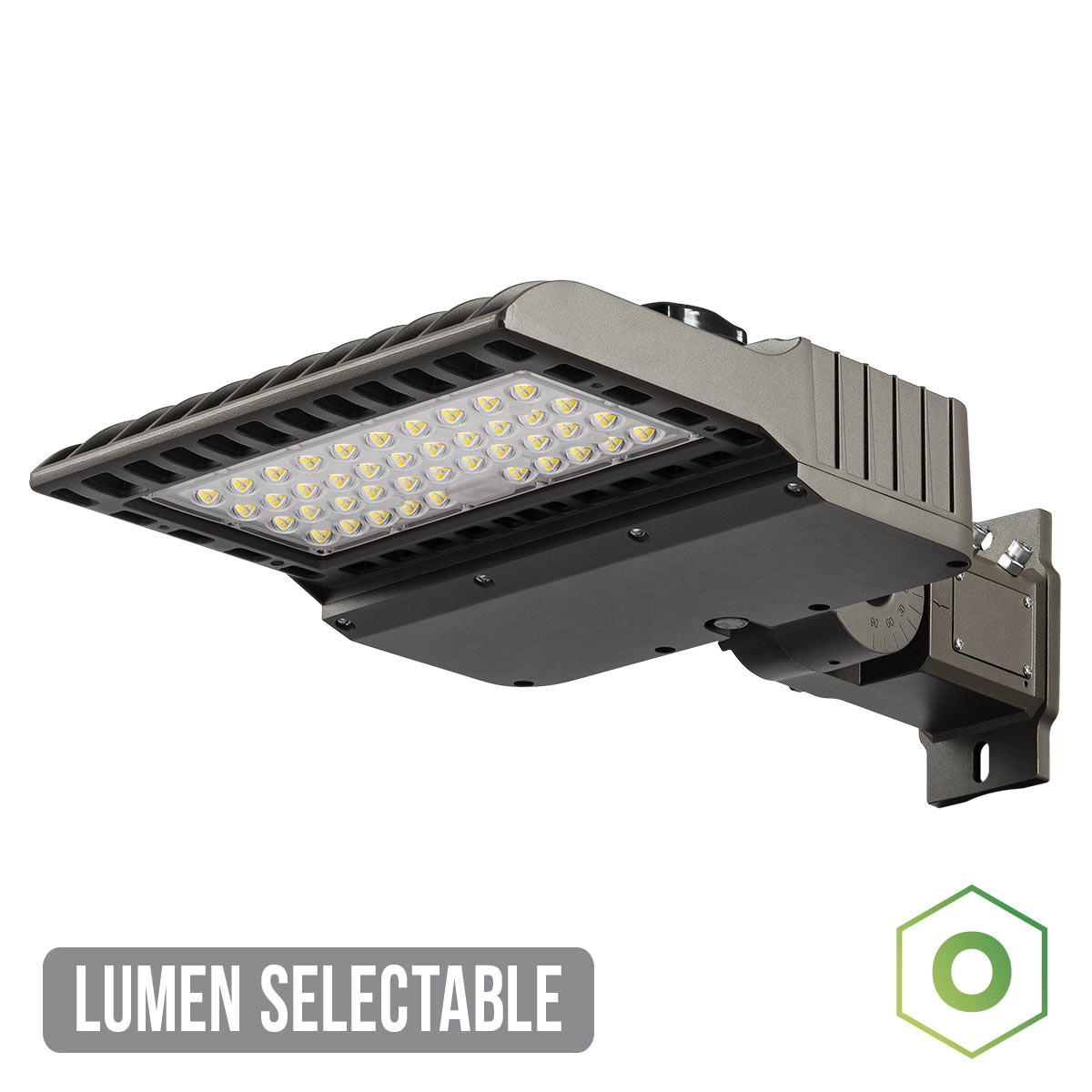

Origin Lumen Selectable Area Light

ORALSEL

Origin by Atlas Lighting is our economy line of products that are designed to provide a highly competitive, lower-cost entry point to LED lighting. The Origin Area Light features multiple lumen output settings in a single fixture. This helps to reduce stocking complexity and provides additional flexibility for contractors.

Ask a Question

Variations

HousingLumen PackageDistributionCRI4000K CCT5000K CCTWattageReplaces Up To
Delivered LumensEfficacy (LpW)Delivered LumensEfficacy (LpW)
ORALSEL12-24LT3808,3471557,92814754175W MH
T5808,2411538,12415054
T38011,65114911,06714278250W MH
T58011,50314711,33914578
T38014,84514314,101136104250W MH
T58014,65614114,447139104
T38017,25313616,388129127400W MH
T58017,03313416,790132127
T38019,70112918,713122153400W MH
T58019,45112719,173125153

Features & Specifications

  • Features multiple selectable lumen packages in a single fixture.
  • Multi-Mount Bracket enables pole, trunnion and slipfitter mounting.

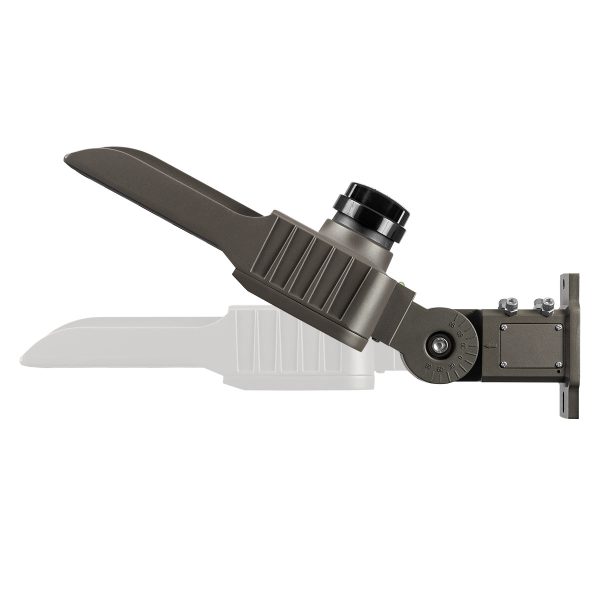

  • Offers 180º of mounting angle adjustment.
  • Both Type III and Type V optics are included in the box.
  • Origin products are backed by the same US-based customer service and technical support teams as all other Atlas products.
Max Lumens
20,000
Min Lumens
8,000
Color Temperatures
4000K 5000K
Additional Options
QuickShipUL ListedLumen Selectable
