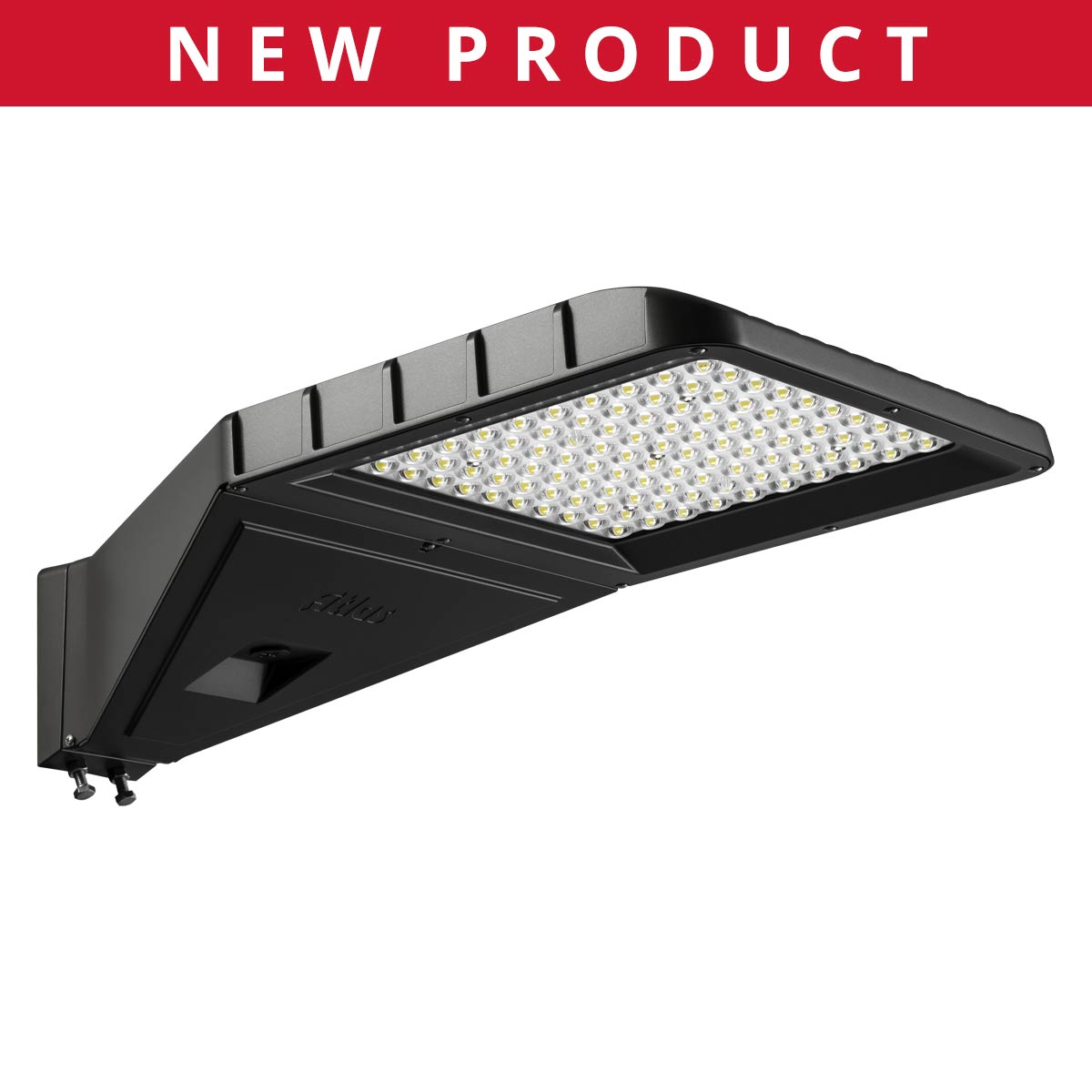

Eagle Series 3rd Gen Area Light

EAM

The new 3rd Generation Eagle Area Light delivers powerful performance, flexible lumen options, and precision-engineered optics for virtually any application. Building on the proven Eagle platform, the latest generation features improved 80 CRI light quality, outputs up to 50,000 lumens, and a Universal Bracket System for quick, easy installation.

Featured Resources

Eagle 3rd Gen Cut Sheet

Variations

Housing	Unit	Distribution	CRI	3000K CCT		4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Unit	Distribution	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
EAM	6L	T2	80	6,331	147	6,689	156	6,645	155	6,579	153	43	175W
		T3		6,369	148	6,729	156	6,684	155	6,618	154
		FT		6,156	143	6,504	151	6,461	150	6,397	149
		T5		6,343	148	6,702	156	6,657	155	6,591	153
	9L	T2	80	9,215	149	9,737	157	9,672	156	9,576	154	62	175W
		T3		9,271	150	9,795	158	9,730	157	9,634	155
		FT		8,961	145	9,468	153	9,405	152	9,312	150
		T5		9,233	149	9,755	157	9,691	156	9,595	155
	12L	T2	80	12,619	147	13,332	155	13,244	154	13,113	152	86	250W
		T3		12,695	148	13,413	156	13,324	155	13,192	153
		FT		12,271	143	12,964	151	12,878	150	12,751	148
		T5		12,643	147	13,358	155	13,269	154	13,138	153
	18L	T2	80	17,740	140	18,743	148	18,619	147	18,434	145	127	400W
		T3		17,847	141	18,856	148	18,731	147	18,546	146
		FT		17,251	136	18,226	144	18,105	143	17,926	141
		T5		17,774	140	18,779	148	18,655	147	18,470	145
	24L	T2	80	23,344	125	24,664	132	24,501	131	24,258	130	187	400W
		T3		23,485	126	24,813	133	24,649	132	24,404	131
		FT		22,700	122	23,983	128	23,825	127	23,589	126
		T5		23,389	125	24,711	132	24,548	131	24,305	130
	30L	T2	80	29,138	150	30,533	157	30,927	159	30,701	158	194	750W
		T3		29,245	151	30,646	158	31,041	160	30,814	159
		FT		28,608	147	29,978	155	30,364	157	30,142	155
		T5		29,419	152	30,828	159	31,225	161	30,997	160
	36L	T2	80	35,495	150	37,194	157	37,518	158	37,399	158	237	1000W
		T3		35,626	150	37,331	158	37,655	159	37,536	158
		FT		34,849	147	36,517	154	36,834	155	36,718	155
		T5		35,837	151	37,553	158	37,879	160	37,759	159
		T2	80	42,011	143	44,022	150	44,404	151	44,266	151	294	1000W
		T3		42,165	143	44,184	150	44,569	152	44,427	151
		FT		41,247	140	43,222	147	43,598	148	43,460	148
		T5		42,416	144	44,447	151	44,832	152	44,691	152
	50L	T2	80	45,692	139	47,880	146	48,295	147	48,144	146	329	1000W
		T3		45,861	139	48,057	146	48,474	147	48,321	147
		FT		44,861	136	47,009	143	47,415	144	47,268	144
		T5		46,132	140	48,341	147	48,760	148	48,608	148

Features & Specifications

Advanced single-piece acrylic optics ensure smooth light coverage.
Available distribution patterns include Types II, III, V and Forward Throw.
On most distributions, the optics can be rotated to change the direction of the light pattern.
Universal Bracket System makes installation to any style pole quick and easy.
