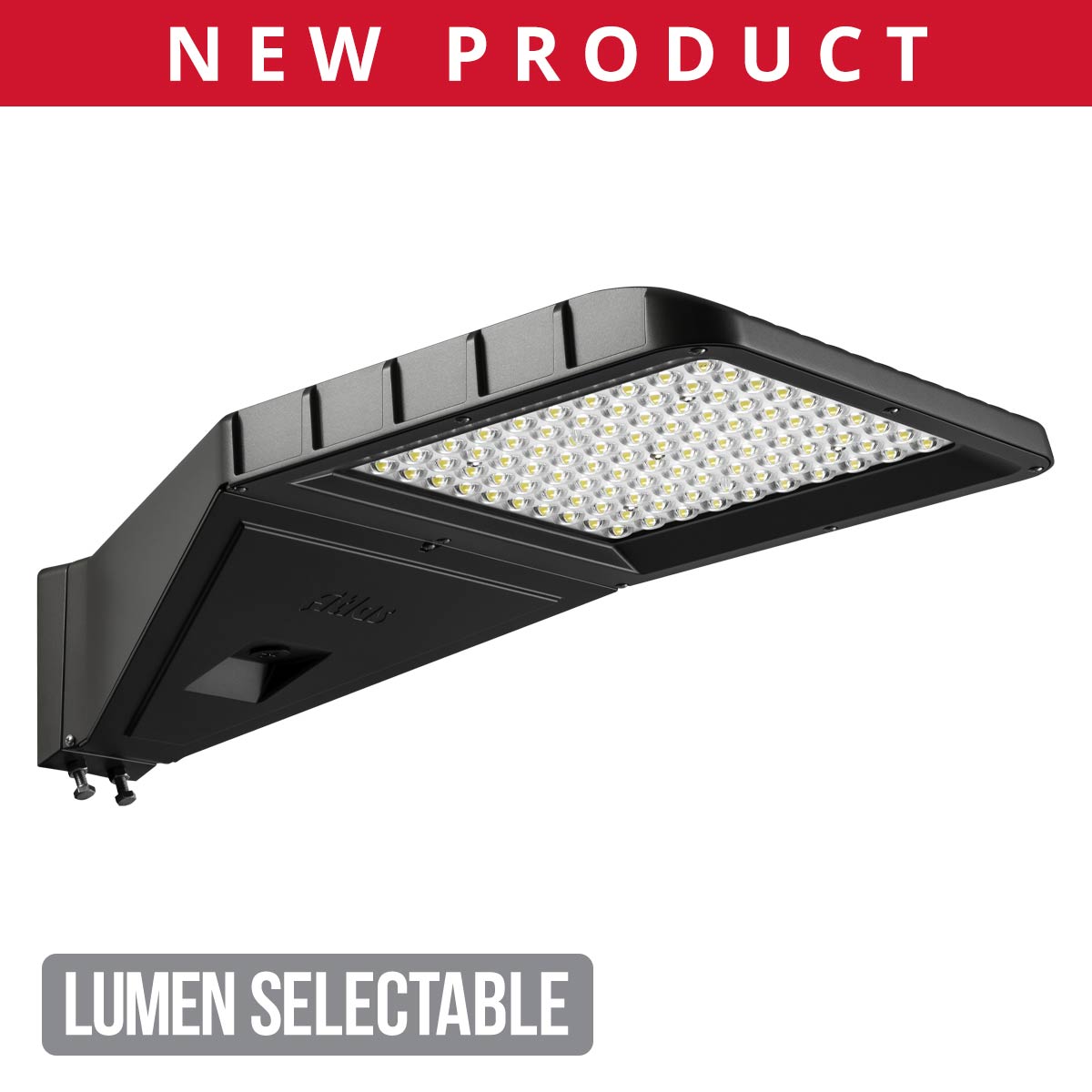

Eagle Series 3rd Gen Lumen Selectable Area Light

EAMS

The new 3rd Generation Eagle Area Light delivers powerful performance, flexible lumen options, and precision-engineered optics for virtually any application. Building on the proven Eagle platform, the latest generation features improved 80 CRI light quality, outputs up to 50,000 lumens, and a Universal Bracket System for quick, easy installation.

Featured Resources

Eagle 3rd Gen Cut Sheet

Variations

Housing	Unit	Distribution	CRI	3000K CCT		4000K CCT		4500K CCT		5000K CCT		Wattage	Replaces Up To
Housing	Unit	Distribution	CRI	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Delivered Lumens	Efficacy (LpW)	Wattage	Replaces Up To
EAMS	12-24L	T2	80	12,619	147	13,332	155	13,244	154	13,113	152	86	250W
		T3		12,695	148	13,413	156	13,324	155	13,192	153
		FT		12,271	143	12,964	151	12,878	150	12,751	148
		T5		12,643	147	13,358	155	13,269	154	13,138	153
		T2		17,740	140	18,743	148	18,619	147	18,434	145	127	400W
		T3		17,847	141	18,856	148	18,731	147	18,546	146
		FT		17,251	136	18,226	144	18,105	143	17,926	141
		T5		17,774	140	18,779	148	18,655	147	18,470	145
		T2		23,344	125	24,664	132	24,501	131	24,258	130	187	400W
		T3		23,485	126	24,813	133	24,649	132	24,404	131
		FT		22,700	122	23,983	128	23,825	127	23,589	126
		T5		23,389	125	24,711	132	24,548	131	24,305	130
	25-50L	T2	80	24,061	156	25,213	164	25,431	165	25,352	165	154	400W
		T3		24,150	157	25,306	164	25,525	166	25,446	165
		FT		23,623	153	24,754	161	24,968	162	24,891	162
		T5		24,293	158	25,456	165	25,677	167	25,597	166
		T2		34,220	148	35,861	155	36,170	157	36,056	156	231	1000W
		T3		34,345	149	35,993	156	36,303	157	36,188	157
		FT		33,596	146	35,208	152	35,512	154	35,399	153
		T5		34,549	150	36,207	157	36,519	158	36,403	158
		T2		45,692	139	47,880	146	48,295	147	48,143	146	329	1000W
		T3		45,861	139	48,057	146	48,474	147	48,321	147
		FT		44,861	136	47,009	143	47,417	144	47,268	144
		T5		46,132	140	48,341	147	48,760	148	48,607	148

Features & Specifications

Replace 3 standard area lights with just 1 fixture.
Advanced single-piece acrylic optics ensure smooth light coverage.
Available distribution patterns include Types II, III, V and Forward Throw.
On most distributions, the optics can be rotated to change the direction of the light pattern.
Universal Bracket System makes installation to any style pole quick and easy.
